AC HD3  HD4 652 653 655 STEERING CLUTCHES

                                                                                               Haga clic aqui para Espanol



The Allis Chalmers crawlers, models H3, HD3, H4, HD4, 653, AND 655's all used the same steering clutches. 4 friction discs (fiber) were required per clutch and 3 steel separator plates. We supply new after market discs to take care of your problems and restore your clutches.

If you want to upgrade your clutches to bimetallic style discs, instead of the fiber discs, you will get a longer lasting steering clutch. The clutch discs are less affected by moisture and are less prone to sticking or bonding together, seizing up your clutches. No additional discs are required.  You will have no more problems with broken teeth when using the bimetallic discs.  We now have these available at 29.00 each.

When making the choice between the less expensive fiber discs ($21 ea) vs the Bimetallic discs ($29 ea) keep in mind that with only 4 discs per clutch, your total cost difference is $32.00 to end up with a far superior clutch.

                                       uspsfreeshippingicon.jpg (27000 bytes)   In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email webmaster@tractorparts.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



0233887--->71003719 fiber friction Discs @ 21.00 ea (4 required per 0233887--->clutch)

70233886 (0233886) Steel Discs @ 15.00 ea (3 required per clutch)

Bimetallic discs, p/n 71010964 for replacing the fiber 0233887 (71003719)   @ 29.00 ea

AC HD3 BIMETALLIC STEERING CLUTCH PACK
HD3 HD4 653 655 Bimetallic & Steel Steering Clutch Discs

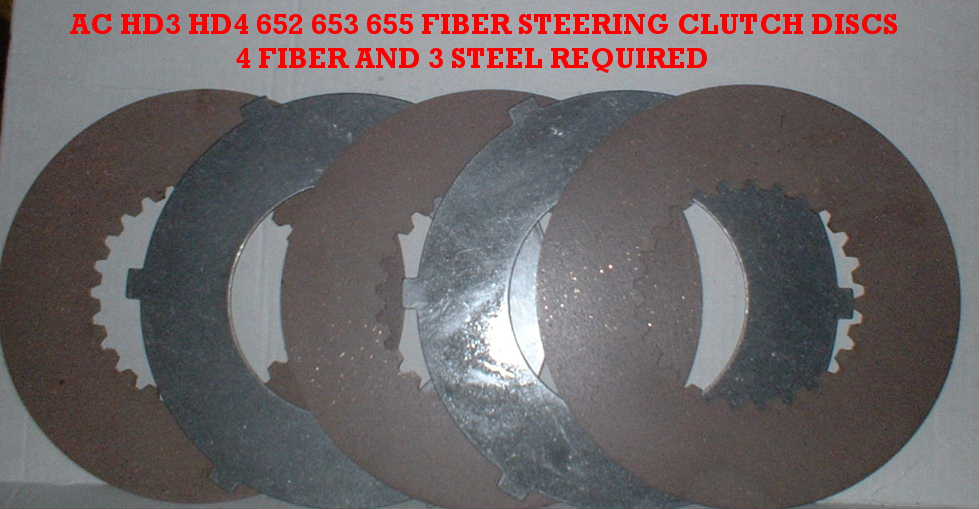

AC HD3 HD4 652 653 655 FIBER STEERING CLUTCH DISCS
Early Style Fiber and Steel Steering Clutch Discs

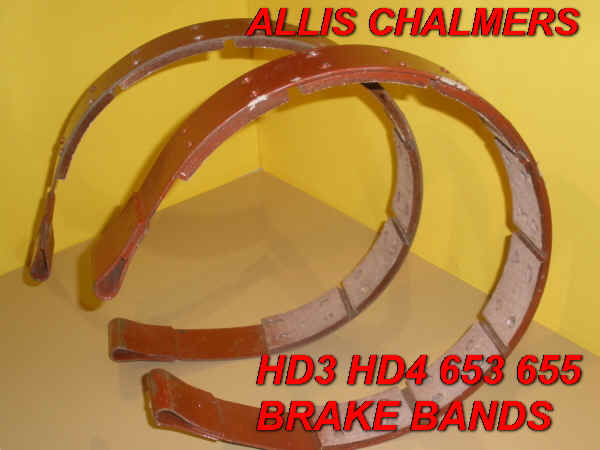

New brake bands, with new linings $145.00 ea   P/N'S 240876-->1003881->1003749-->025828

New aftermarket Steering Clutch Pressure Plate....bare...p/n# 230423  $62.00 ea

AC_HD3_HD4_PRESSURE_PLATE_252548_233888.JPG (210326 bytes)  FOR COMPLETE PRESSURE PLATE ASSEMBLY P/N 252548 OR 233888    $390.00

AC_0233893_BEARING.JPG (126637 bytes)   Steering Clutch Throw-out Bearing    p/n 0233893  NEW  25.00 ea

 AC-SPRING230361LEVER230380.jpg (83103 bytes)     Set of 3 steering clutch Pressure Plate levers p/n#230380    set of 3    $55.00 total (includes adjusting screws/jam nut
Set of 3 lever springs (3) 230361   $35.00

AC flywheel Clutch Pressure Springs 223889.JPG (187116 bytes)
NEW STEERING CLUTCH PRESSURE SPRINGS   P/N 223889    $5.50 EA OR $40.00 FOR COMPLETE SET OF 9

NEW STEERING CLUTCH FORK RETURN SPRINGS P/N 233902   $9.00 EA OR SET OF 2 FOR $15.00

NEW STEERING CLUTCH BRAKE RETURN SPRING P/N 240356   $28.00 EA OR SET OF 2 FOR $50.00



STEERING CLUTCH PARTS PAGES

STEERING CLUTCH SERVICE INFORMATION

HD3/4 FINAL DRIVE PARTS

HD3/4 BEVEL GEAR AND CROSS SHAFT PARTS

AC 652 653 655 STEERING CLUTCH PARTS



Click HERE to view all of our new steering clutch discs.


CLICK HERE FOR DETAILS



Email  webmaster@tractorparts.com for orders or questions.


CONTACT OUR OFFICE at 1-208-342-8911

General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
*All prices are in USD & do not include shipping
All prices are for new aftermarket unless stated otherwise
All OEM part numbers are for references only
