MITSUBISHI BD2F BD2G BD2H BD2J
For updates and current pricing ......CLICK HERE!
| We have been producing and selling steering clutch fiber discs and steel separator
plates for the BD2 series of crawlers since 2005. We are also providing new

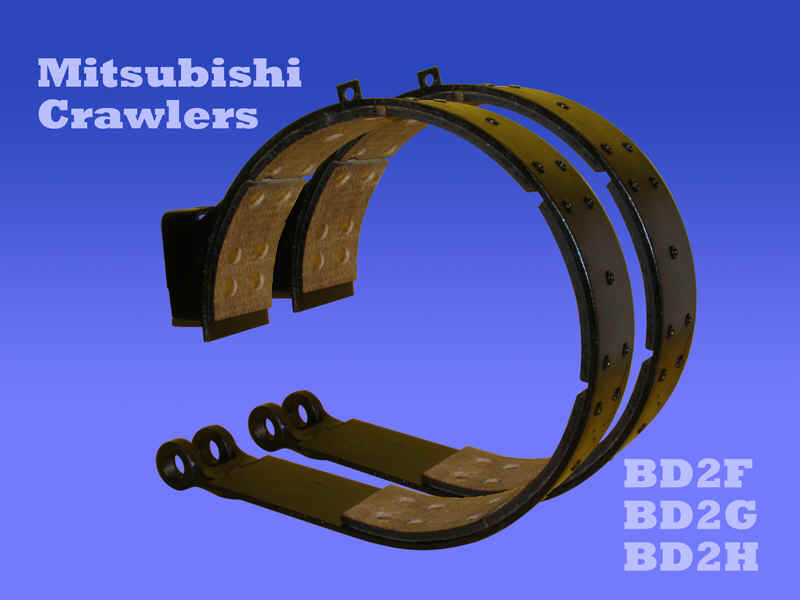

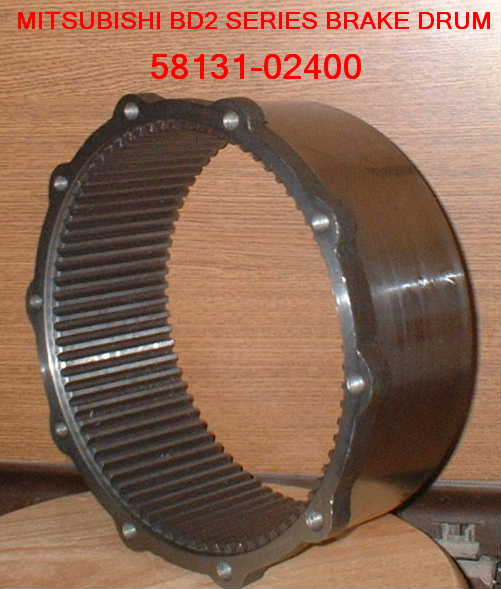

aftermarket brake drums, brake bands, and liningkits for the same series. The
earlier BD2F fiber discs had riveted on linings, and were replaced by the fiber discs

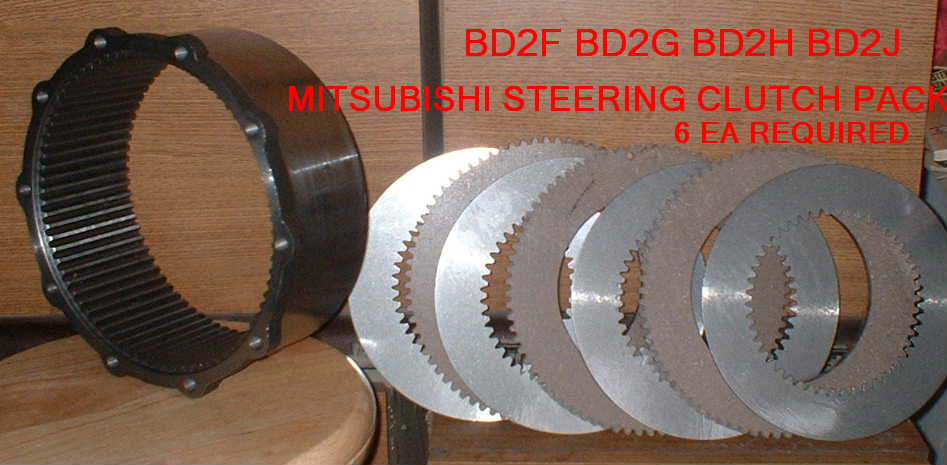

which we now produce. The same fiber and steel discs fit all the above series. Six (6) discs each of the fiber 58831-24600 are used per clutch and Six (6) of the steel separator plates 58131-12600 are also used when replacing all discs. Depending on the condition of your clutches, you can often get by with only replacing
the fiber discs. Use your best judgment for evaluating your steel plates. You
do not want to install plates that are rough and would accelerate the wear on your new
fiber discs. Clean them with wire brushes, sandblasting, or whatever it takes to get
them as smooth as possible and then make your decision. These steering clutches are
not that much fun to have to remove and reinstall because you tried to save a hundred
dollar bill. FIBER DISCS p/n 58831-24600 (6) required per clutch STEEL PLATES p/n 58131-12600 (6) required per clutch

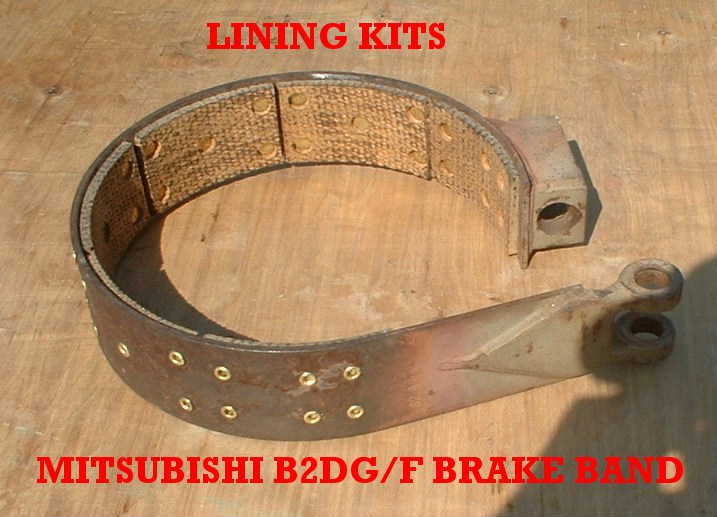

LINING KITS ARE ALSO AVAILABLE...........LININGS AND RIVETS FOR ONE BAND
|
||
