D3 STEERING CLUTCHES

The D3 and D3B and D3C models were originally dry type steering clutches and changed to the oil steering clutches later in their series.

The Dry Clutch D3 79U series and the D3B 23Y series used composite friction discs, qty (7) 8E4075 (earlier part numbers of 6Y4912 or 6S3183) per clutch and qty (6) steel separator plates (2H6936) per steering clutch. You will almost always have to replace the fiber discs, but the steel plates are usually reusable. If the steel plates are damaged, by scoring, warping, or just plain old wear they should be replaced.  (Oil Type Clutch parts can be found below the Dry Type Clutch parts info)

Occasionally we get calls regarding "complete" steering clutch kits. The term, "Complete Kit", is misleading because it implies that the parts supplier knows what you need for your clutch. They don't!! (And...not all"Kits" being offered by different parts suppliers are even the same!!)

We take the menu approach. This gives you, the equipment owner or repair shop, the right to select only the items that you need to make your repairs. You're the boss!

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email webmaster@tractorparts.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

uspsfreeshippingicon.jpg (27000 bytes)  In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.

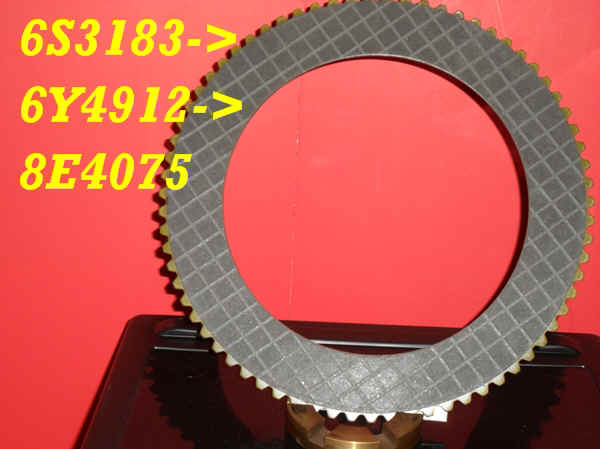

6S3183_6Y4912_8E4075_DISC.JPG (215439 bytes)   NEW    After a few years producing and providing the standard fiber disc, we have now produced a steel based
friction disc to strengthen your clutch and improve its potential for long term reliability.  Similar to the bimetallic disc, the center steel plate is sandwiched between two fiber wear surfaces.  Anticipating a higher volume of demand, we have been able to keep the cost very close to the earlier style fiber disc.             $19.00           The increased cost for these heavier duty discs is $49.00 per clutch   (A small price to pay for teeth that will not break off!  )

(7) D3 Fiber/composite friction discs (8E4075 or 6Y4912 or 6S3183) per clutch  $12.00 EA.



(6) D3 2H6936 Steel plates per clutch  $12.00 ea

Compression Springs....set of 8 ...


CAT_D3_STEERINGCLUTCH_THROW-OUT_BEARING_6S3435_5P6982.JPG (196906 bytes)  DRY TYPE STEERING CLUTCH THROW-OUT BEARING   6S3435--->5P6982   $33.00 EA


CAT_D3_BRAKE_LINING_KIT.JPG (152145 bytes)     BRAKE LINING KIT FOR DRY TYPE BRAKE BANDS............$42.00 PER KIT   (5 pads and rivets)
SOME OF THE LATER DRY TYPE BANDS HAD 6 PADS PER BRAKE BAND.......$52.00 PER KIT (6 pads and rivets)




CAT_D3_STRRG_CL_COMPRESSION_TOOL.JPG (141589 bytes)  STEERING CLUTCH COMPRESSION TOOL FOR ASSEMBLY/DISASSEMBLY   $65.00




 Oil Clutch style of steering clutches used different discs and different quantities.  One complete steering clutch used Qty 9 friction discs 6Y7914 (Earlier P/n's 5K8617 or 3A2858 were replaced by the 6Y7914) and Qty 9 Steel discs P/n 5K8616.  There was also a special plate, P/n 5V0593, a little heavier than the normal friction disc, and one per clutch was used.  (earlier P/n's replaced by the 5V0593 were 4K1333, 9K5484, and 2Y5134)

(9) Friction Discs  CAT-6Y7914DISC.jpg (22748 bytes)    6Y7914 per clutch $12.00   EA.


(9) Steel separator plates CAT-5K8616DISC.jpg (21585 bytes)     5K8616 per clutch 9.00 ea


(1) Special Disc Assy  CAT-5V0593DISC.jpg (25166 bytes)     5V0593 per clutch 16.60 ea



CAT_D3C_OIL_TYPE STEERINGCLUTCH_THROW-OUT_BEARING_7B7515.JPG (200360 bytes) STEERING CLUTCH THROW-OUT BEARING FOR OIL TYPE CLUTCHES 7B7515                                  $33.00
EARLIER BEARING PART NUMBERS REPLACED BY THE 7B7515 WERE 7F4031 6V0924 2U5271 2U0767 7R0892



Compression Springs....set of 8 ...6S3414_D3_SPRINGS.JPG (226243 bytes)     Set of springs $74.00


D3 OIL CLUTCH COMPRESSION_TOOL.JPG (197721 bytes)   STEERING CLUTCH COMPRESSION TOOL FOR OIL TYPE D3 STEERING CLUTCHES $65.00


LINING KITS FOR THE OIL TYPE CLUTCHES......INNER AND OUTER LININGS AND RIVETS......LINING KIT $194.00

                  SERVICE INFORMATION FOR OIL TYPE STEERING CLUTCHES FOR D3C D4C DC

CAT_D4_STEERING_CLUTCH_DISASSEMBLY2.JPG (186223 bytes) CAT_D4_STEERING_CLUTCH_DISASSEMBLY3.JPG (191597 bytes)
The "T" bar puller can be used with the center  push-bolt or a
hydraulic cylinder.
We have a lot of misc pins
laying around but this chunk
of steel fit perfectly.
On a D2 or a D4 the clutches
are pressed off end of bevel
gear cross shaft.  On
D5 D6 D7's you press off a tapered splined stub shaft and flange.
Removal of bearing cage and
bearing makes disassembly
easier.
Don't forget to remove set
screws in retainer nut!!
When you press down on the compression tool you want something to keep the studs in place so get a spacer to keep studs from dropping when you turn the clutch over.
You can use a press like we usually do but unless you do a lot of these clutches a simple piece of all-thread is all that you need.  Anchor it through your work bench or table.
Place compression tool and add a washer to disperse the pressure over the face of the tool.  Otherwise you can end up with a concave tool!
With your spacer underneath to keep your studs in place (shown above)
and compression tool on top
you are ready to compress the springs.
As the springs compress the end of the studs will gain clearance until the locks
are free from the retainers.
Remove all of the locks and be careful not to lose any!
When you put these back in you apply grease to the locks
keep them in place.
Release all pressure and remove compression tool.  You can now remove retainers and springs.
Now is time to check measurements on springs.
if any are shorter than the others by 1/8" it should be replaced. It is probably a good practice just to replace them due to low cost and the labor involved if you have to go back in there again!
CAT_D4_STEERING_CLUTCH_DISASSEMBLY15.JPG (186083 bytes) CAT_D4_STEERING_CLUTCH_DISASSEMBLY16.JPG (188792 bytes)
Now you can remove all the parts for inspection of discs and components.

Minor rippling on the inner drum is fine.

Make sure stud holes on pressure plate are not wallowed out or worn too far below the surface.



D3 GENERAL SPECIFICATION INFO CLICK HERE

Click HERE to view all of our new steering clutch discs.


CLICK HERE FOR DETAILS



Email  webmaster@tractorparts.com for orders or questions.


CONTACT OUR OFFICE at 1-208-342-8911

General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
*All prices are in USD & do not include shipping
All prices are for new aftermarket unless stated otherwise
All OEM part numbers are for references only
