D6 STEERING CLUTCHES

The D6 steering clutches ( D6 4R, 5R, 8U, 9U) and D6B 37A and 44A are the same design as the later D5 model machines, using the same inner driving drums, same bimetallic friction discs, same steel separator plates, clutch springs, and even the same brake drum and brake linings! Twelve (12) bimetallic friction discs and twelve (12) steel separator plates are required for each clutch pack. Unless severe damage has occurred, you often have to replace only the bimetallic friction discs. This keeps your costs down quite a bit. I would highly recommend that you check your brake bands at this time, unless you just enjoy pulling wrenches. All parts listed below are new replacement parts, non oem.
Brake Band relining kit $42.00 per clutch (a band is 3 sections, the price includes all rivets and linings for one complete brake band)

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email webmaster@tractorparts.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



(12) D6 2F8621-->6Y7160 Bimetallic friction discs per clutch @ $20.00 ea
(12) D6 1A3987 Steel separator plates per clutch@ $12.50 ea

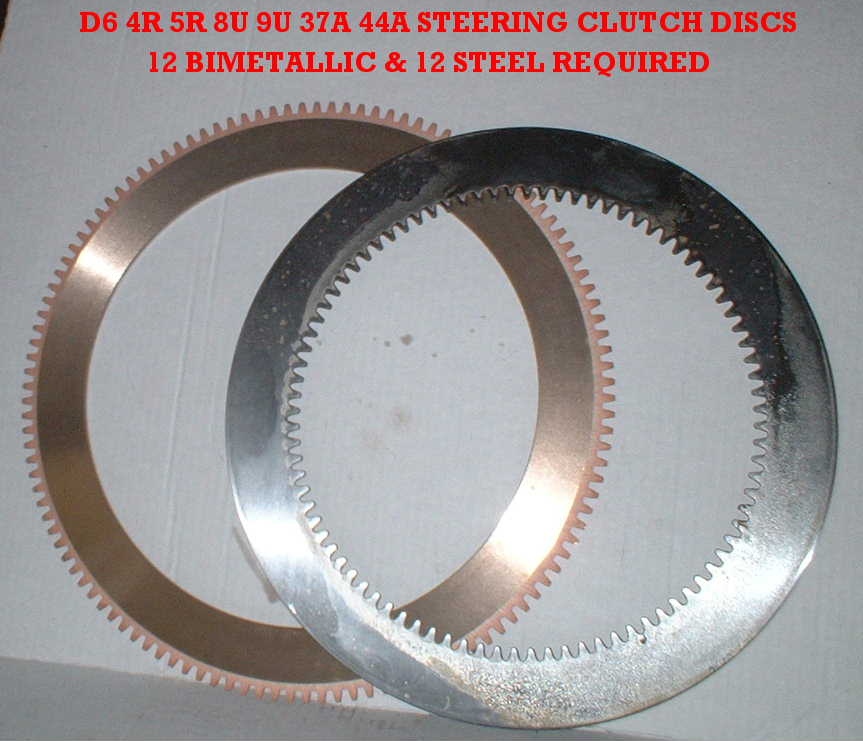

CAT D6 STEERING CLUTCH DISCS

D6LININGKIT.jpg (60263 bytes)  NEW D6 BRAKE LINING KITS INCLUDING RIVETS.  FOR DRY TYPE STEERING CLUTCH
BRAKE BANDS...ONE COMPLETE KIT, W/ RIVETS FOR ONE COMPLETE 3 PC BRAKE BAND  $42.00   P/N 5H2307 LINING KIT


NEW D6  DRY TYPE STEERING CLUTCH THROW-OUT BEARINGS    P/N 1B4103 8M8068   $45.00 EA
The bearings fit D6 2H, 4R 5R MODELS, AS WELL AS THE 8U, 9U, 37A, AND 44A D6B'S.   Crawler loaders 10A and 20A's and more!

CAT_6B7178_6B7159_ADJUSTING_YOKE_NUT.JPG (216829 bytes)  BRAKE BAND ADJUSTING FORK AND NUT     45.00 EA or 75.00 PER SET (ONE EACH)

6B7178 FORK          Original 6B7159 adjusting nut was replaced by the updated 8H9379 nut to make adjusting easier.


CAT_D6_BRAKE_BAND.JPG (184010 bytes)   IN STOCK!! NEW BAKE BANDS COMPLETE WITH NEW LINING, NEW 3 PC BRAKE BAND  315.00 OUTRIGHT
AND NO CORE CHARGES!!
These bands will fit the D6 AND D6B DRY TYPE CLUTCHES FOR THE D6 MODELS 4R, 5R, 8U, 9U, 37A, 44A .
The part numbers for these bands went through quite an evolution as did the bands.   The early bands, for the model 4Rs and 5R's and 8U and 9U's did not have any reinforcing plates at the joints.  When the part numbers went from the "B" part numbers to the "F" part numbers, reinforcing plates were added to the "6F" and on all bands thereafter.  Upper Band P/N's 6B7484->6F6285->1M0547->8E7624  Center Band P/N's 6B7352->6F2686->8E7622   Lower Band P/N's 6B7241->6F2687->4M8766->9P0740->8E7625

WHEN REMOVING YOUR STEERING CLUTCH..........IT IS IMPORTANT TO RIG YOUR LIFTING SLING ON THE BRAKE BAND
PROPERLY TO PREVENT DAMAGE TO YOUR BRAKE BAND (CLICK HERE FOR INFO)
  This excerpt from a 1955 Service Magazine
is a reference for the D8 steering clutch but the principle is the same.  Do not damage your brake band!

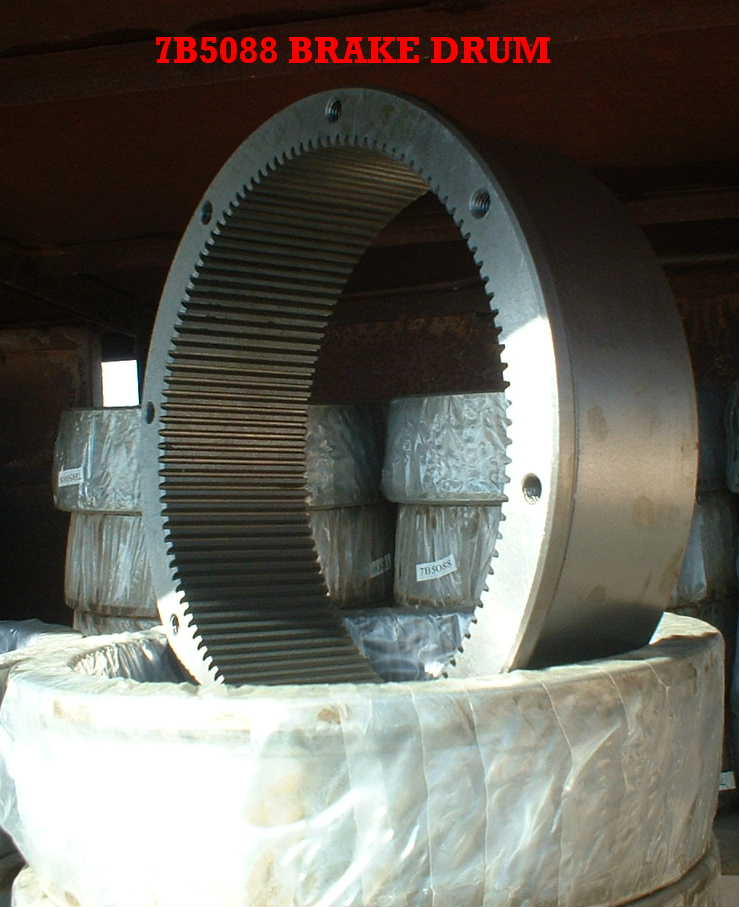

7B5088 BRAKE DRUM
6B4189--->7B5088--->2234813 NEW Outer Brake Drum $185.00

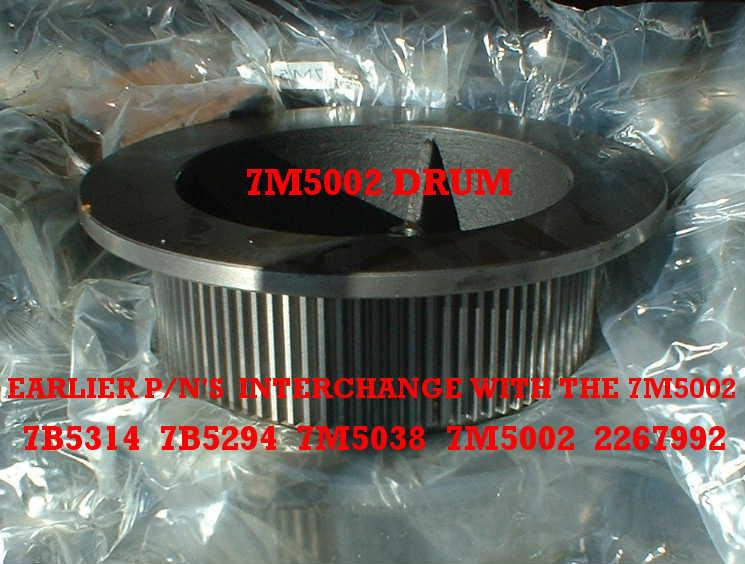

7M5002 INNER DRIVING DRUM
7B5314 --> 7M5038 --> 7B5294--->7M5002--->2667992 NEW Inner Driving Drum $190.00

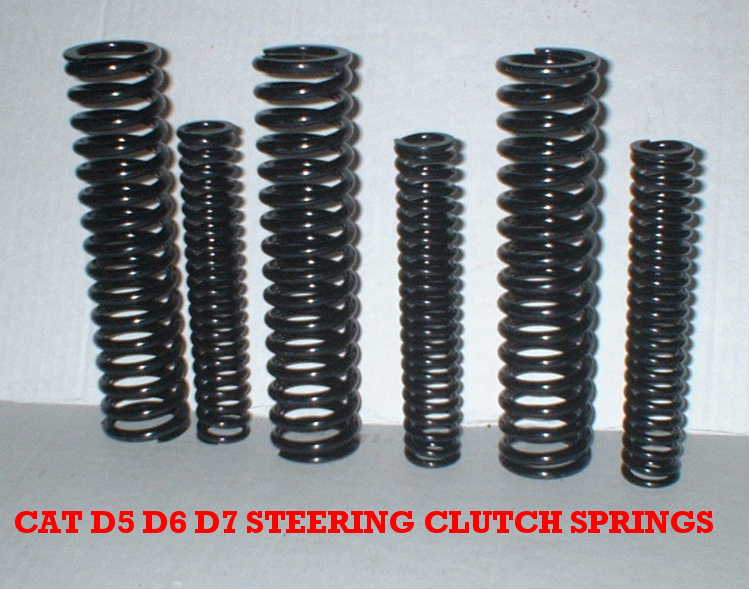

CAT D5 D6 D7 STEERING CLUTCH SPRINGS
(8) Steering clutch 6B9633 outer springs $4.50 ea
(8) Steering clutch 6B9632 inner springs $3.00 ea

Steering clutch Compression Tool  74.00


CAT-4S9074DISC.jpg (25028 bytes)  FOR THE OIL TYPE FLYWHEEL CLUTCHES, WE HAVE THE NEW FRICTION DISCS  64.00 EA  (2 REQUIRED)
2H6121--->4H2923--->1S8183--->4S9074 CLUTCH DISC WENT THROUGH SOME PART NUMBER CHANGES TO GET TO 4S9074

CAT_6B1360_PINION_GEAR.JPG (192278 bytes)   TO PROTECT YOUR FLYWHEEL RING GEAR WE HAVE PRODUCED NEW STARTER PINION GEARS...6B1360   $121.00



CAT_FINAL_DRIVE_SEAL_ASSY.JPG (138527 bytes)        Bellows type final drive seals for the early D6 are now in stock  $128.00  CLICK HERE FOR DETAILS
D6 FINAL DRIVE SEAL 1A4127--->3B5730--> 1H8868-->5H0426 BELLOWS SEAL

CAT D6 8U AND 9U MAGNETO
CAT MADE SEVERAL CHANGES IN MAGNETOS OVER THE YEARS WITH DIFFERENT PART NUMBERS AND MANUFACTURERS
8A0615 4F8678 5F3872 5F7497 7F9927 9H4479 4S6470 9Y4270...........The Wico magneto above replaces all of them.             $385.00


GENERAL SPECIFICATIONS FOR THE D6 8U/9U CLICK HERE

GENERAL SPECIFICATIONS FOR THE D6B 37A/44A CLICK HERE

CATERPILLAR STEERING CLUTCH SPEC SHEET



CAT_D4_STEERING_CLUTCH_DISASSEMBLY2.JPG (186223 bytes) CAT_D4_STEERING_CLUTCH_DISASSEMBLY3.JPG (191597 bytes)
The "T" bar puller can be used with the center  push-bolt or a
hydraulic cylinder.
We have a lot of misc pins
laying around but this chunk
of steel fit perfectly.
On a D2 or a D4 the clutches
are pressed off end of bevel
gear cross shaft.  On
D5 D6 D7's you press off a tapered splined stub shaft and flange.
Removal of bearing cage and
bearing makes disassembly
easier.
Don't forget to remove set
screws in retainer nut!!
When you press down on the compression tool you want something to keep the studs in place so get a spacer to keep studs from dropping when you turn the clutch over.
You can use a press like we usually do but unless you do a lot of these clutches a simple piece of all-thread is all that you need.  Anchor it through your work bench or table.
Place compression tool and add a washer to disperse the pressure over the face of the tool.  Otherwise you can end up with a concave tool!
With your spacer underneath to keep your studs in place (shown above)
and compression tool on top
you are ready to compress the springs.
As the springs compress the end of the studs will gain clearance until the locks
are free from the retainers.
Remove all of the locks and be careful not to lose any!
When you put these back in you apply grease to the locks
keep them in place.
Release all pressure and remove compression tool.  You can now remove retainers and springs.
Now is time to check measurements on springs.
if any are shorter than the others by 1/8" it should be replaced. It is probably a good practice just to replace them due to low cost and the labor involved if you have to go back in there again!
CAT_D4_STEERING_CLUTCH_DISASSEMBLY15.JPG (186083 bytes) CAT_D4_STEERING_CLUTCH_DISASSEMBLY16.JPG (188792 bytes)
Now you can remove all the parts for inspection of discs and components.

Minor rippling on the inner drum is fine.

Make sure stud holes on pressure plate are not wallowed out or worn too far below the surface.

Click HERE to view all of our new steering clutch discs.


CLICK HERE FOR DETAILS
