IH500 crawler
IH500 STEERING CLUTCHES

The steering clutches for the International model 500, 500C, and 500E series crawlers were derived from the earlier TD4 and TD5 crawlers. The 500 and early 500C's (9" diameter discs) crawlers used 7 fiber discs 675848R2 and 6 steel discs 635384R1. The later serial numbered 500C's and all 500E's (9 15/16" diameter discs) also used 7 fiber discs 676834R2 or (R1) and 6 steel discs 676833R2 or (R1) on each side.  We supply new after market replacement DISCS, DRUMS, BRAKE BANDS, PRESSURE PLATES, HUBS and BASE PLATES for both styles of clutch packs.


Occasionally we get calls regarding "complete" steering clutch kits. The term, "Complete Kit", is misleading because it implies that the parts supplier knows what you need for your clutch. They don't!! (And...not all"Kits" being offered by different parts suppliers are even the same!!)

We take the menu approach. This gives you, the equipment owner or repair shop, the right to select only the items that you need to make your repairs. You're the boss and we will try to help you control your bottom line costs!

                                                                                            500E_5795_TRACTORPARTS_DOT_COM.jpg (165278 bytes)   IH 500E IN FOR PARTS MAY 2017, 4 IN ONE FRONT BUCKET AND RIPPER

uspsfreeshippingicon.jpg (27000 bytes)  In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



To be sure that you get the correct discs, please make sure that your discs match the dimensions and tooth counts.
               For 10" discs and clutches, scroll down to the 500C and 500E section.

IH500 & early 500C's 9" discs...FIBER DISCS 675848R2  (old p/n 635385R1) 26 internal teeth, 9" O.D. $21.00 ea
IH500 & early 500C's 9" discs    STEEL DISCS 635384R1(9 external square dogs) $20.00 ea

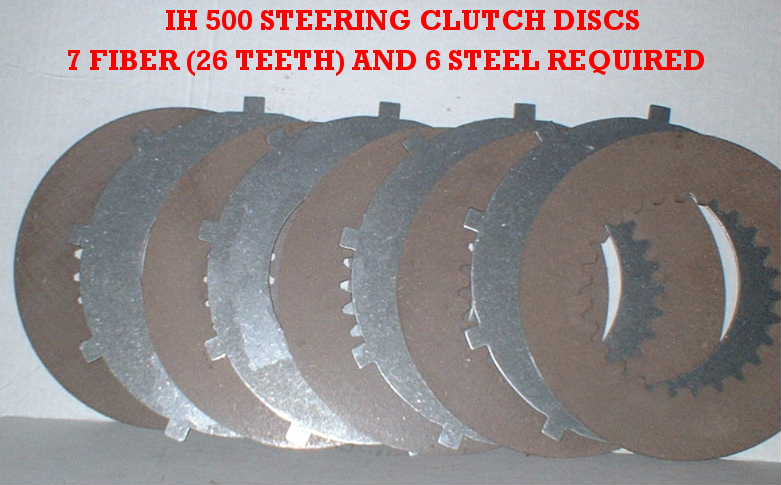

IH 500 STEERING CLUTCH DISCS IH Model 500 fiber and steel discs

BASE PLATES.....635381R2..9" Clutches........635381R2_BASE_PLATE__.JPG (195895 bytes).............$185.00

INNER STEERING CLUTCH DRIVING HUBS....635376R1 / 636416R1...9" Clutches....636416R1_INNER_DRIVING_HUB.JPG (210117 bytes).......$165.00


IH 500 FOR 9" CLUTCHES    INNER STEERING CLUTCH DRIVING HUBS RETAINER RING

IH_RETAINING_RING_635394R1_TD4_TD5_500.jpg (406086 bytes)   635394R1             $19.00 EA  or 32.00 for set of 2(arriving February 2017)

IH_500_FINAL_DRIVE_PINION_636695R11_13_3_EIGHTHS.jpg (179110 bytes)  IH 500 FINAL DRIVE PINION  636695R11     NEW   185.00

IH500BRAKEDRUM.jpg (3731 bytes) FOR IH 500 NEW BRAKE DRUMS ............635375R1........$185.00 ea

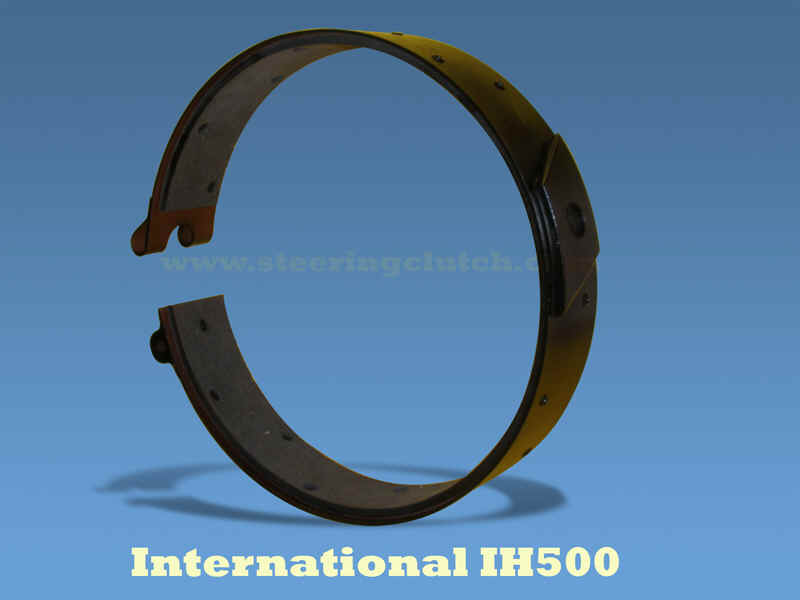

636576R91_BRAKE_BAND.jpg (25854 bytes)  FOR IH 500 NEW  BRAKE BANDS  WITH NEW LINING  (FOR USE W/ 9" CLUTCH DISCS)   636576R91   $145.00
We ordered enough of these in volume to keep the cost down to make the brake band competitive with relining your own band.  This will speed up your repair by having them ready to ship.

IH500STEERINGCLUTCHPRESSUREPLATE.jpg (99845 bytes)  IH 500 NEW  STEERING CLUTCH PRESSURE PLATE   635557R91  125.00
THIS PRESSURE PLATE IS DESIGNED FOR THE EARLY 500 CRAWLERS, 9 INCH CLUTCH DISCS.

IH500THROWOUTBEARING359957R91.jpg (87544 bytes)  IH 500 STEERING CLUTCH THROW-OUT BEARING.....359957R91   $15.00  (NOT THE SAME AS ON 500C/E)

IH500STEERINGCLUTCHLEVER.jpg (93454 bytes) SET OF 3 = 353246R91  Steering Clutch levers fit IH 500 steering clutches with the 9" discs.  (The levers for the larger clutch packs (10") are different!!)                   55.00 per set of 3
includes 3 each of
353243R91 Lever
51461D Spring
51460D Pin
103371 Pin

SET..........635393R1 & 635392R1 LINKS ....T4/TD4/T5/TD5/500 W/ 9" CLUTCHES.....one of each...$60.00)       IH_ADJUSTING_LINK_635392R1_635393R1.JPG (215654 bytes)

ADJUSTING LINK (female end)............635393R1....T4/TD4/T5/TD5/500 W/ 9" CLUTCHES.......$35.00

ADJUSTING LINK (male end)...............635392R1.....T4/TD4/T5/TD5/500 W/ 9" CLUTCHES.......$35.00



Late 500C's & 500E's (9 15/16" diameter) FIBER DISCS 676834R2 discs 33 internal teeth. $16.00 ea
Late
500C's & 500E's (9 15/16" diameter) STEEL DISCS 676833R2 discs. $18.00 ea

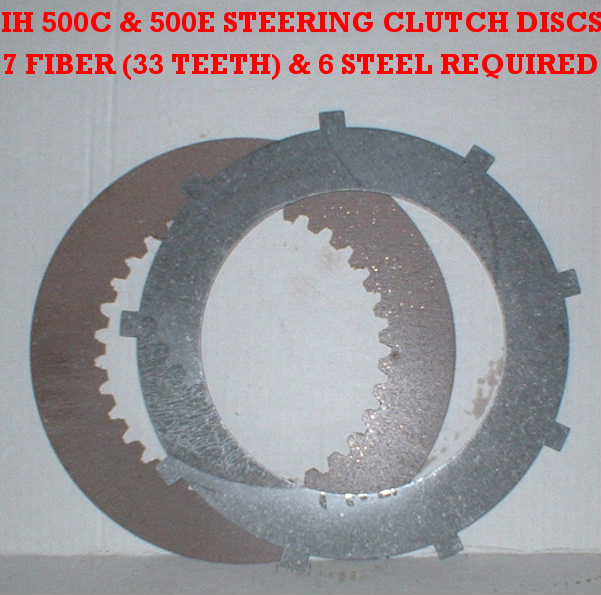

IH 500C & 500E STEERING CLUTCH DISCS IH Model 500C & 500E fiber and steel discs


IH500CBRAKEDRUM.jpg (3602 bytes)  NEW BRAKE DRUM FOR IH 500C  ............676828R2............ 185.00

IH_500C_FINAL_DRIVE_PINION_676861R11_12_7_EIGHTHS_LENGTH.jpg (167052 bytes)    IH 500C FINAL DRIVE PINION   676861R11      NEW   185.00



BASE PLATES ....500C and 500E...........676831R1../...850676R1......10" Clutches........676831R1_BASE_PLATE.JPG (202281 bytes)....$185.00

INNER STEERING CLUTCH DRIVING HUBS...500C and 500E....676829R1..    10" Clutches....676829R1_500C_500E_INNER_HUB.JPG (200701 bytes).......$165.00


INNER STEERING CLUTCH DRIVING HUB RETAINING RING    676830R1    FOR 10" CLUTCHES   $19.00 EA OR 32.00 FOR SET OF 2

IH500CSTEERINGCLUTCHPRESSUREPLATE676827R91.jpg (9263 bytes)  NEW  STEERING CLUTCH PRESSURE PLATE       676827R91       $226.00
FOR THE 500C STEERING CLUTCHES WITH THE 9 15/16" (10") FRICTION DISCS


IH_500C-E_850691C91_THROWOUT_BEARING.JPG (226366 bytes)     NEW STEERING CLUTCH THROW-OUT BEARINGS      500C and 500E's      850691C91     $35.00

NEW  500C STEERING CLUTCH RELEASE LEVER SPRINGS      IH_366465R1_STEERINGCLUTCH_LEVER_SPRING.JPG (158928 bytes)   SPRINGS P/N 366465R1 SET OF 3 @ 35.00

IH 500C BRAKE BAND.jpg (195856 bytes)  IH 500C  NEW BRAKE BANDS WITH NEW LINING (FOR USE W/ 10" DISCS) 676915R92  $145.00   We ordered enough of these in volume to keep the cost down to make the brake band competitive with relining your own band.  This will speed up your repair by having them ready to ship.


IH_500E_FINAL_DRIVE_PINION_852522C1_50IN_GAUGE_10_3_QTR_INCH.jpg (173421 bytes)   IH 500E FINAL DRIVE PINION      852522C1     NEW   185.00


IH500EBRAKEDRUM.jpg (4446 bytes) NEW BRAKE DRUM FOR IH 500E .........676828R2......  185.00

IH500ESTEERINGCLUTCHPRESSUREPLATE676827R91.jpg (9908 bytes)  NEW  STEERING CLUTCH PRESSURE PLATE        676827R91      226.00
FOR THE 500E STEERING CLUTCHES WITH THE 9 15/16" (10") FRICTION DISCS


NEW 500E STEERING CLUTCH RELEASE LEVER SPRINGS       IH_366465R1_STEERINGCLUTCH_LEVER_SPRING.JPG (158928 bytes)   SPRINGS P/N 366465R1 SET OF 3 @ 35.00

IH 500E BRAKE BAND.jpg (200053 bytes)    IH 500E  NEW BRAKE BANDS WITH NEW LINING .....676915R92..... $145.00   We ordered enough of these in volume to keep the cost down to make the brake band competitive with relining your own band.   This will speed up your repair by having them ready to ship.
