                JD MC/JD420/JD430/JD40C/JD440/JD1010
                              STEERING CLUTCHES

The John Deere crawler models MC, 420, 430, 440, and 1010 use the same fiber discs and steel separator plates.

The JD MC crawler uses qty 6 of the friction discs and 5 of the steel separator plates

The JD420 & 430 crawlers used different numbers of plates depending on their serial numbers.  On those machines Serial # 158041 and below the clutches used 7 fiber discs and 6 steel separator plates in each clutch.  On Serial # 158402 and up, the 420 and the 430 used 8 fiber discs and 8 steel separator plates per clutch.  We also carry the shuttle clutch discs for the JD420 and JD430.   (AT10438 & T10578)

The JD440 crawlers with a serial number up thru 455632 used 7 fiber discs p/n M3293 and 6 steel discs p/n AM984, replaced by the M872 .
The JD440 crawlers serial number 455633 and up used 8 fiber discs M3293 and 8 steel discs AM984 replaced by M872.

The JD1010 crawlers used 8 fiber discs in all the serial number ranges. From serial number 1 thru 31000 quantity 8 steel plates, p/n M872 were used and above that serial number, quantity 7 steel plates were used.


                          uspsfreeshippingicon.jpg (27000 bytes)  In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.  We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.comfor orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

FOR A WIDER SELECTION OF ALL OF OUR DISCS MADE FOR MANY OF THE JOHN DEERE MACHINES....CLICK HERE

JD MC
The JD MC originaly used 6 fiber friction discs and 5 steel separator plates. Because of changes over the years, primarily in the thickness of the fiber frictions, a different number may be required.  As a general rule, stack height should be the height of the inner hub whether it is the M873T or the M1618T hub.

*********M3293 fiber discs, we have discontinued because the bimetallic clutch packs are so much better.  We will no longer sell the inferior fibers.  When you compare the "other" clutch packs and clutch kits, they are probably selling you the fiber frictions.  We only sell the superior clutch packs and clutch kits.************

Bimetallic friction discs are available.  These discs will have steel teeth and bronze friction surfaces. Expect longer duty life, no broken teeth, and approximately 3% higher coefficient of friction.
JD_MC_JD420_JD430_JD440_STEERING_CLUTCH_DISC__M3293.jpg (243783 bytes)  BIMETALLIC FRICTION DISCS ORDER M3293BM  24.00 ea

AM984_M872_STEERING_CLUTCH_PLATE_JD_MC_420_430_440_1010.jpg (281953 bytes)  AM984/M872 steering clutch steel separator plates, new  @ 16.00 ea

One complete JD Model MC bimetallic clutch pack of 6 bimetallic friction discs and 5 steel plates has a cost of $224.00

JD MC STEERING CLUTCH KIT OPTION A   6 bimetallic frictions, 5 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band LINING KIT.     479.00

JD_MC_BIMETALLIC_STEERING_CLUTCH_KIT_W_BRAKE_BAND.jpg (270772 bytes)  JD MC STEERING CLUTCH KIT OPTION B    6 bimetallic frictions, 5 steels, PressurePlate Assy, throwout bearing, pilot bearing and COMPLETE BRAKE BAND.   617
.00

JD420STRCLBRG.jpg (60731 bytes) JD MC   New Steering Clutch Throw Out Bearing  AM3983 15.00 ea

JD_JD8567_PILOT__BEARING.jpg (254577 bytes) JD MC New Steering Clutch Pilot Bearing  JD8567   7.85 ea

JD_AT10566_AM995T_JD_MC_STEERING_CLUTCH_BRAKE_BAND.jpg (259021 bytes) NEW JD MODEL MC BRAKE BAND W/ NEW LINING
168.00 ea
                      AT10566 REPLACES THE EARLIER AM995T

JD_420_430_440_BRAKE_LINING_KIT_WITH__RIVETS.JPG (267335 bytes)  JD MC LINING KIT, INCLUDING RIVETS,    60.00  ea

JD_AT16121_PRESSURE_PLATE_AT11853_PRESSURE_PLATE_JD420_430_440_1010.JPG (224257 bytes)   JD MC New Steering Clutch Pressure Plate AT11853--->AT16121   NEW...NO CORE CHARGE AND NO EXCHANGE    $225.00
                           Replaces earlier part numbers AM1930T or AM987T

JD420

The JD420 crawlers used different numbers of plates depending on their serial numbers.  On those machines Serial # 158041 and below the clutches used 7 fiber discs and 6 steel separator plates in each clutch.
On Serial # 158402 and up, the 420 used 8 fiber discs and 8 steel plates per clutch.


*********M3293 fiber discs, we have discontinued because the bimetallic clutch packs are so much better.  We will no longer sell the inferior fibers.   When you compare the "other" clutch packs and clutch kits, they are probably selling you the fiber frictions.  We only sell the superior clutch packs and clutch kits.************

Bimetallic friction discs are now available.  These discs will have steel teeth and bronze friction surfaces. Expect longer duty life, no broken teeth, and approximately 3% higher coefficient of friction.

JD_MC_JD420_JD430_JD440_STEERING_CLUTCH_DISC__M3293.jpg (243783 bytes)  BIMETALLIC FRICTION DISCS ORDER M3293BM  24.00 ea


AM984_M872_STEERING_CLUTCH_PLATE_JD_MC_420_430_440_1010.jpg (281953 bytes)   AM984/M872 steering clutch steel separator plates, new  @ 16.00 ea

420 COMPLETE BIMETALLIC STEERING CLUTCH PACK BELOW SER#158041 HAS A COST OF $264.00   (7 FRICTION AND 6 STEEL)

JD_420_BELOW_158041_BIMETALLIC_STEERING_CLUTCH_KIT_W_LIN_KIT.jpg (279044 bytes)  BELOW SER#158041 JD 420 STEERING CLUTCH KIT OPTION A    7 bimetallic frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band lining kit.    519.00

BELOW SER#158041 JD 420 STEERING CLUTCH KIT OPTION B   7 bimetallic frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot bearing and COMPLETE BRAKE BAND.   657.00

JD_420_BIMETALLIC_STEERING_CLUTCH_PACK_ABOVE_SER_158042.jpg (279535 bytes)   JD 420 COMPLETE BIMETALLIC STEERING CLUTCH PACK ABOVE SER#158042 HAS A COST OF $320.00  (8 FRICTION AND 8 STEEL)


JD_420_SER_ABOVE_158042_BIMETALLIC_STEERING_CLUTCH_KIT_W_LIN_KIT.jpg (277525 bytes)  ABOVE SER#158041 JD 420 STEERING CLUTCH KIT OPTION A   8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band lining kit.   575.00

ABOVE SER#158041 JD 420 STEERING CLUTCH KIT OPTION B   8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearingand COMPLETE BRAKE BAND   713.00

For the JD420 we have also produced the SHUTTLE CLUTCH DISCS



JD420STRCLBRG.jpg (60731 bytes) JD420   New Steering Clutch Throw Out Bearing  AM3983 15.00 ea

JD_JD8567_PILOT__BEARING.jpg (254577 bytes)   JD420   New Steering Clutch Pilot Bearing  JD8567   7.85 ea

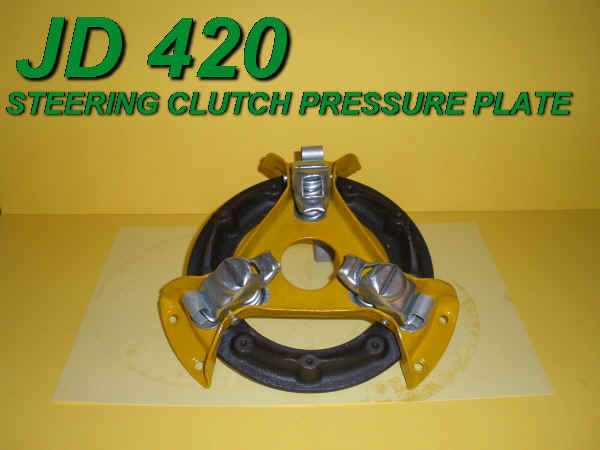

JD_AT16121_PRESSURE_PLATE_AT11853_PRESSURE_PLATE_JD420_430_440_1010.JPG (224257 bytes)   JD420   New Steering Clutch Pressure Plate AT11853--->AT16121   NEW...NO CORE CHARGE AND NO EXCHANGE    $225.00

168.00 ea
                      AT10566 REPLACES THE EARLIER AM995T


JD_420_430_440_BRAKE_LINING_KIT_WITH__RIVETS.JPG (267335 bytes)  JD420 LINING KIT,  INCLUDING RIVETS,    60.00  ea


JD430

The 430 crawlers used different numbers of plates depending on their serial numbers.  On those machines Serial # 158041 and below the clutches used 7 fiber discs and 6 steel separator plates in each clutch.  On Serial # 158402 and up, the 430 used 8 fiber discs and 8 steel plates per clutch.

*********M3293 fiber discs, we have discontinued because the bimetallic clutch packs are so much better.  We will no longer sell the inferior fibers.  When you compare the "other" clutch packs and clutch kits, they are probably selling you the fiber frictions.  We only sell the superior clutch packs and clutch kits.************

Bimetallic friction discs are now available.  These discs will have steel teeth and bronze friction surfaces. Expect longer duty life, no broken teeth, and approximately 3% higher coefficient of friction.

JD_MC_JD420_JD430_JD440_STEERING_CLUTCH_DISC__M3293.jpg (243783 bytes)  BIMETALLIC FRICTION DISCS ORDER M3293BM  24.00 ea

AM984_M872_STEERING_CLUTCH_PLATE_JD_MC_420_430_440_1010.jpg (281953 bytes)  AM984/M872 steering clutch steel separator plates, new  @ 16.00 ea

430 COMPLETE BIMETALLIC STEERING CLUTCH PACK BELOW SER#158041 HAS A COST OF $264.00   (7 FRICTION AND 6 STEEL)

JD_430_BELOW_158041_BIMETALLIC_STEERING_CLUTCH_KIT_W_LIN_KIT.jpg (277541 bytes)  BELOW SER#158041 JD 430 STEERING CLUTCH KIT OPTION A   7 bimetallic frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band lining kit.     519.00

BELOW SER#158041 JD 430 STEERING CLUTCH KIT OPTION B   7 bimetallic frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot bearing and COMPLETE BRAKE BAND.   657.00

JD 430 COMPLETE BIMETALLIC STEERING CLUTCH PACK ABOVE  SER#158042 HAS A COST OF $320.00   (8 FRICTION AND 8 STEEL)

  JD_430_ABOVE_158042_BIMETALLIC_STEERING_CLUTCH_KIT_W_LIN_KIT.jpg (275019 bytes)  ABOVE SER#158041 JD 430 STEERING CLUTCH KIT OPTION A   8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band lining kit.   575.00

ABOVE SER#158041 JD 430 STEERING CLUTCH KIT OPTION B   8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearingand COMPLETE BRAKE BAND   713.00


JD430STRGCLBRG.jpg (60325 bytes)  JD 430  New Steering Clutch Throw Out bearing  AM3983 15.00 ea


JD_JD8567_PILOT__BEARING.jpg (254577 bytes)   JD430   New Steering Clutch Pilot Bearing  JD8567   7.85 ea

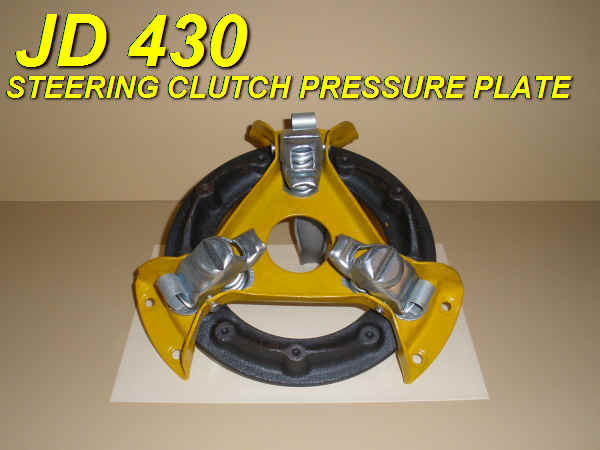

JD_AT16121_PRESSURE_PLATE_AT11853_PRESSURE_PLATE_JD420_430_440_1010.JPG (224257 bytes)     JD430   New Steering Clutch Pressure Plate AT11853--->AT16121   NEW...NO CORE CHARGE AND NO EXCHANGE   $225.00

   JD_430_AT10566_AM995T_STEERING_CLUTCH_BRAKE_BAND.jpg (257848 bytes)   NEW JD 430 BRAKE BAND W/ NEW LINING      168.00 ea
                      AT10566 REPLACES THE EARLIER AM995T


JD_420_430_440_BRAKE_LINING_KIT_WITH__RIVETS.JPG (267335 bytes)   JD430 LINING KIT,  INCLUDING RIVETS,    60.00  ea

For the JD430 we have also produced the SHUTTLE CLUTCH DISCS

AT10438-JOHNDEERESHUTTLECLUTCHDISC.jpg (22482 bytes)....AT10438    $29.00 EA  Shuttle clutch bimetallic friction

T10578-JOHNDEERESTEEL_DISC.jpg (20309 bytes)....T10578     $17.00 EA  Steel separator plates


JD40C/JD440

The JD440 crawlers with a serial number up thru 455632 used 7 fiber discs p/n M3293 and 6 steel discs p/n AM984, replaced by the M872 .
The JD440 crawlers serial number 455633 and up used 8 fiber discs M3293 and 8 steel discs AM984 replaced by M872.


*********M3293 fiber discs, we have discontinued because the bimetallic clutch packs are so much better.  We will no longer sell the inferior fibers.  When you compare the "other" clutch packs and clutch kits, they are probably selling you the fiber frictions.  We only sell the superior clutch packs and clutch kits.************

Bimetallic friction discs are now available.  These discs will have steel teeth and bronze friction surfaces. Expect longer duty life, no broken teeth, and approximately 3% higher coefficient of friction.

JD_MC_JD420_JD430_JD440_STEERING_CLUTCH_DISC__M3293.jpg (243783 bytes)  BIMETALLIC FRICTION DISCS ORDER M3293BM  24.00 ea

AM984_M872_STEERING_CLUTCH_PLATE_JD_MC_420_430_440_1010.jpg (281953 bytes)  AM984/M872 steering clutch steel separator plates, new  @ 16.00 ea

440 COMPLETE BIMETALLIC STEERING CLUTCH PACK BELOW SER#455632 HAS A COST OF $264.00   (7 FRICTION AND 6 STEEL)

JD_440_BELOW_455632_BIMETALLIC_STEERING_CLUTCH_KIT_W_LIN_KIT.jpg (278434 bytes)  BELOW SER#455632 JD 440 STEERING CLUTCH KIT OPTION A   7 bimetallic frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band lining kit.    519.00

BELOW SER#455632 JD 440 STEERING CLUTCH KIT OPTION B   7 bimetallic frictions, 6 steels, PressurePlate Assy, throwout bearing, pilot bearing and COMPLETE BRAKE BAND.   657.00



JD 440 COMPLETE BIMETALLIC STEERING CLUTCH PACK ABOVE  SER#455633 HAS A COST OF $320.00   (8 FRICTION AND 8 STEEL)

JD_440_ABOVE_45563_BIMETALLIC_STEERING_CLUTCH_KIT_W_LIN_KIT.jpg (275853 bytes)   ABOVE SER#455633 JD 440 STEERING CLUTCH KIT OPTION A   8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearing and brake band lining kit.   575.00

ABOVE SER#455633 JD 440 STEERING CLUTCH KIT OPTION B  8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearingand COMPLETE BRAKE BAND   713.00



JD440STRCLBRG.jpg (60435 bytes)  JD440   New Steering Clutch Throw Out bearing  AM3983  15.00 ea

JD_JD8567_PILOT__BEARING.jpg (254577 bytes) JD440   New Steering Clutch Pilot Bearing  JD8567   7.85 ea

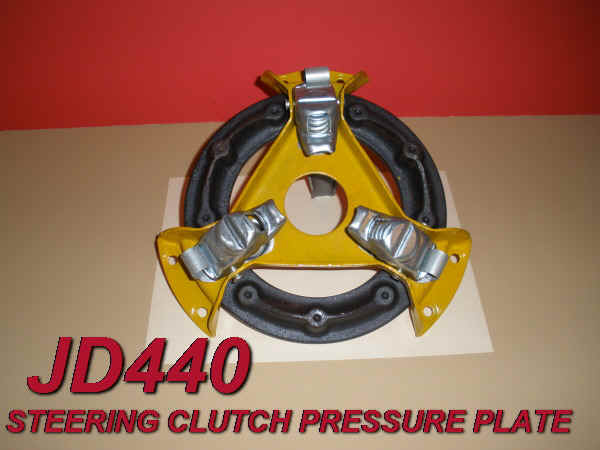

JD_AT16121_PRESSURE_PLATE_AT11853_PRESSURE_PLATE_JD420_430_440_1010.JPG (224257 bytes)     JD440   New Steering Clutch Pressure Plate AT11853--->AT16121   NEW...NO CORE CHARGE AND NO EXCHANGE   $225.00

  JD_440_AT10566_AM995T_STEERING_CLUTCH_BRAKE_BAND.jpg (257659 bytes)   NEW JD 440 BRAKE BAND W/ NEW LINING      168.00 ea
                      AT10566 REPLACES THE EARLIER AM995T


JD_420_430_440_BRAKE_LINING_KIT_WITH__RIVETS.JPG (267335 bytes)     JD440 LINING KIT,  INCLUDING RIVETS,    60.00  ea


JD1010

The JD1010 crawlers used 8 friction discs in all the serial number ranges. From serial number 1 thru 31000 quantity 8 steel plates, p/n M872, were used. Above that serial number, quantity 7 steel plates were used.

*********M3293 fiber discs, we have discontinued because the bimetallic clutch packs are so much better.  We will no longer sell the inferior fibers.  When you compare the "other" clutch packs and clutch kits, they are probably selling you the fiber frictions.  We only sell the superior clutch packs and clutch kits.************

Bimetallic friction discs are now available.  These discs will have steel teeth and bronze friction surfaces. Expect longer duty life, no broken teeth, and approximately 3% higher coefficient of friction.

JD_MC_JD420_JD430_JD440_STEERING_CLUTCH_DISC__M3293.jpg (243783 bytes)  BIMETALLIC FRICTION DISCS ORDER M3293BM  24.00 ea

AM984_M872_STEERING_CLUTCH_PLATE_JD_MC_420_430_440_1010.jpg (281953 bytes)  AM984/M872 steering clutch steel separator plates, new  @ 16.00 ea

JD1010 COMPLETE BIMETALLIC STEERING CLUTCH PACK BELOW SER#31000 HAS A COST OF $320.00  (8 FRICTION AND 8 STEEL)

JD_1010_BELOW_31000_BIMETALLIC_STEERING_CLUTCH_KIT.jpg (288576 bytes)  BELOW SER# 31000 JD 1010 STEERING CLUTCH KIT OPTION 8 bimetallic frictions, 8 steels, PressurePlate Assy, throwout bearing, pilot bearing, return spring, and COMPLETE BRAKE BAND 700.00

JD_1010_ABOVE_31001_BIMETALLIC_STEERING_CLUTCH_KIT.jpg (283621 bytes)   ABOVE SER# 31001 JD 1010 STEERING CLUTCH KIT OPTION 8 bimetallic frictions, 7 steels, PressurePlate Assy, throwout bearing, pilot bearing, return spring, and COMPLETE BRAKE BAND 684.00

JD1010 COMPLETE BIMETALLIC STEERING CLUTCH PACK ABOVE  SER#31001 HAS A COST OF $304.00   (8 FRICTION AND 7 STEEL)


JD1010STCLBRG.jpg (59690 bytes)  JD1010 New Steering Clutch Throw Out bearing  AM3983 15.00 ea

JD_T15801_DISC_BIMETALLIC_76_EXT_TEETH_6.46IN_OD.JPG (406132 bytes)  T15801 POWER REVERSER CLUTCH DISC, SINTERED BIMETALLIC,  76T  4.64 OD     T15801   $15.00 EA

JD_JD8567_PILOT__BEARING.jpg (254577 bytes) JD1010   New Steering Clutch Pilot Bearing  JD8567   7.85 ea

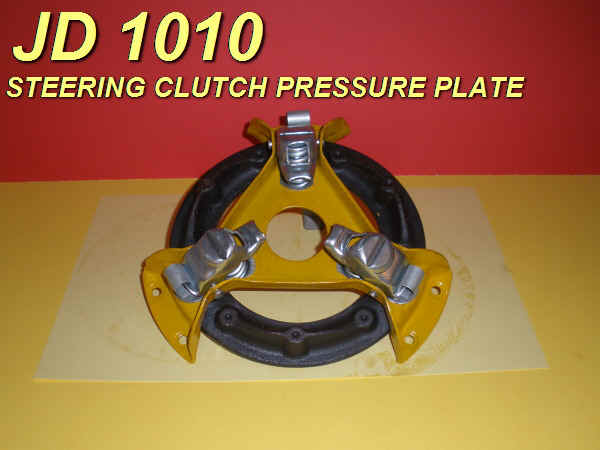

JD_AT16121_PRESSURE_PLATE_AT11853_PRESSURE_PLATE_JD420_430_440_1010.JPG (224257 bytes)     JD1010   New Steering Clutch Pressure Plate AT11853--->AT16121   NEW...NO CORE CHARGE AND NO EXCHANGE   $225.00


JD_T14258_T14259_STRG_CL_CNTRL_SHAFT_SPRINGS.JPG (157598 bytes)   New Steering Clutch control shaft return springs, RH and LH    T14258 and T14259        16.00 EA

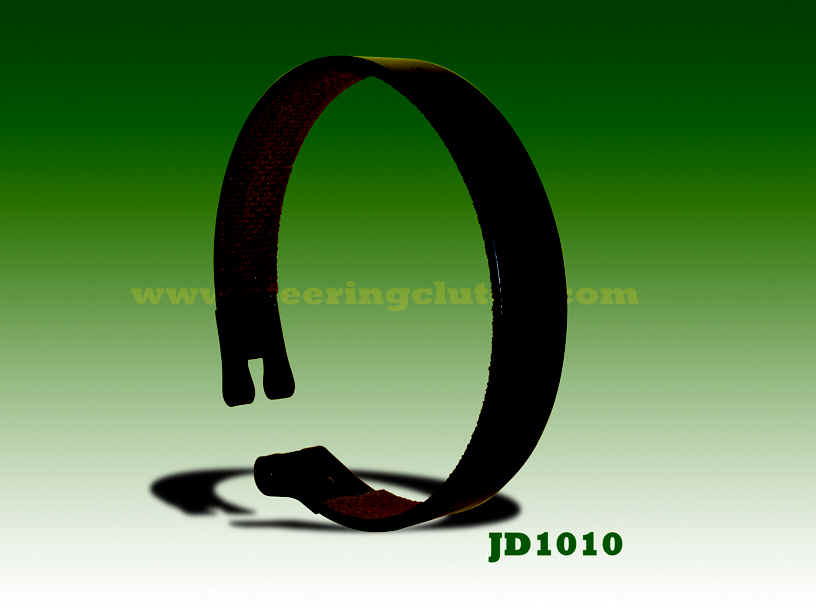

AT129805_AT18845_JOHN_DEERE_JD350_JD350B_JD1010_BRAKE__BAND.jpg (251262 bytes)  New aftermarket Brake Band with new Linings.  We have improved our brakebands over the original design to not only include the normal adhesive glue, but have also reinforced the linings with rivets.  If you have ever removed your JD350 brake bands and seen the linings broken loose from the bands, the riveted reinforced linings will help prevent this problem.     155.00   AT18845-->AT129805

We ordered enough of these in volume to keep the cost down to make the brake band competitive with relining your own band.  This will speed up your repair by having them ready to install.


  SERVICE TOOL #7 FOR REPAIR OF STEERING CLUTCH


Click HERE to view all of our new steering clutch discs.
