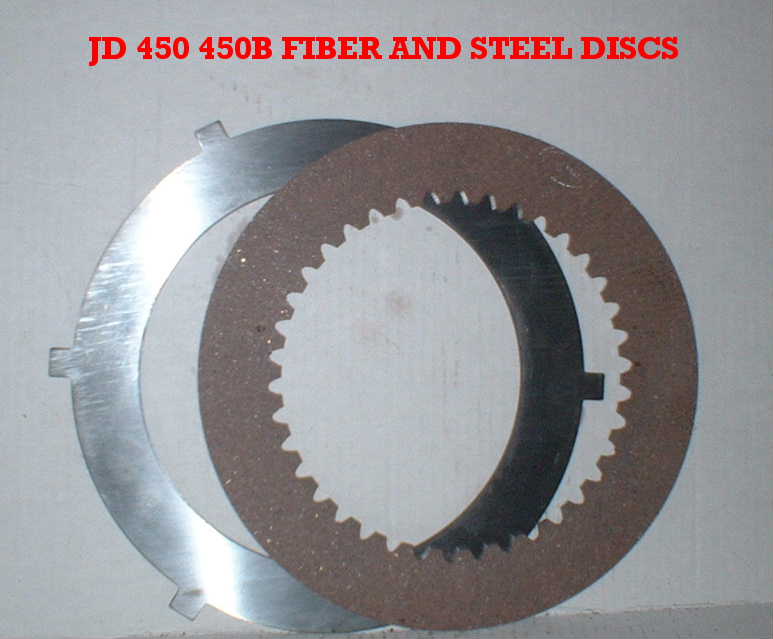

||The John Deere Model 450B's originally used 9
fiber discs p/n T20716 and 8 steel separator plates p/n T31732 (T20717). When later models
were developed they used bimetallic discs to replace the earlier style fiber discs. The
bimetallic disc part number is T44129. The same numbers of discs were used in all
circumstances. Most of the time you can get by with only changing the friction discs. The
steel separator plates can usually be re-used. Check them for roughness, warping, or
dishing and if they are clean, smooth, and straight, by all means re-use them!
To help "steer" you toward creating a superior steering clutch
we wanted to encourage you to use the bimetallic steering clutch discs and to eliminate
the old style fiber friction discs. To do this, we have discontinued the fiber friction
discs to make sure you get a superior clutch.
Because we have now eliminated our costs of buying and stocking the earlier style fiber
friction discs we were able to make the bimetallic friction discs in a larger less
expensive volume, letting us lower the bimetallic disc cost from $29.00 ea to $22.00 ea
STEERING CLUTCH TOOL
When putting your clutch together it is important to get the throwout bearing close to the
3 clutch release levers. JD makes a tool for this but as you have probably
discovered they do not sell the tool, and asking to borrow one, if they even have it,
well.....you are better off writing a letter to Santa. Luckily, Grimy Men stick together and help each
other......You can download a drawing of the tool from our website (CLICK HERE).
If you can print the file on 8 1/2 x 14 legal size paper you will have a good
pattern to get you going. You can get fancy or just make the tool from a manila
folder, cardboard, foam board, or whatever is handy.
In US only, via Priority Mail, 2-3 day delivery, on orders $500 or
can usually ship on the same day any items we have in stock that do not have to be pulled
from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of firstname.lastname@example.org)
All items below are in stock and if you would
like to get any of them on the way just let us know! If you are in the US you may
call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. You may also
email email@example.com for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
FOR A WIDER SELECTION OF ALL OF
OUR DISCS MADE
FOR MANY OF THE JOHN DEERE MACHINES....CLICK HERE
T20716 fiber disc, new aftermarket, .....no
longer supplied...use Bimetallic
T44129 bimetallic disc, new aftermarket, NOW $22.00 ea
T31732 steel separator plates, new aftermarket, $12.00
IF YOU DECIDE YOU NEED COMPLETE CLUTCH PACK...9
BIMETALLIC AND 8 STEEL..YOUR TOAL COST IS $264.20 PER SIDE
BIMETALLIC FRICTION DISCS 22.00 EA Will work for dry type or oil type cteering
T82355 FRICTION DISCS, PAPER FACED. Some users prefer the paper over the bimetallic and some
prefer bimetallic over paper faced discs. We provide both options. PAPER FACED @ $25.00 EA
IF YOU DECIDE YOU NEED COMPLETE CLUTCH PACK...9 PAPER FACED AND 8 STEEL..YOUR TOAL COST IS $289.20 PER
The T20717 steel separator plates(used in the
earlier JD450's) are often confused with the T31732 plates used in the later steering
clutches of the JD450B's. To be sure which plates you have in your clutch the
thickness should be measured. The T20717 will measure closer to .087-.09 while the
later T31732 discs will be closer to .097-.099. If the quantity of your discs varies
from what is normally required, it is usually cause by the mis-use of the wrong steel
separator plates. The depth of the brake drum was deeper in the 450B.
To complete your JD 450B steering
clutch rebuild, we have produced NEW steering clutch pressure
plates, complete with mounting cover, springs, levers and pressure plate.
JD450B NEW STEERING CLUTCH THROW OUT BEARING $25.00
JD9326 STEERING CLUTCH PILOT BEARING $4.00 (ONE
USED PER CLUTCH)

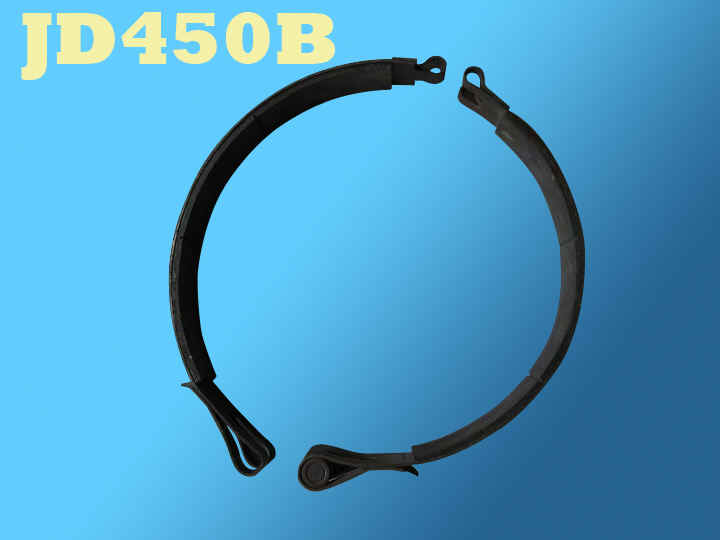

Brake band, two pieces, upper and lower, new bands with
new linings, both halves for a total of
AT129806 & AT129807 replaces earlier AT18420/AT18418 and
AT86899/AT86898............Complete 2 piece band @ $145.00 We ordered enough
of these in volume to keep the cost down to make the brake band competitive with relining
your own band. This will speed up your repair and cut your costs by having them
ready to install.
BRAKE BAND RETAINER SPRINGS T23861 NEW
$16.00 EA OR SET OF (2) @ 25.00
Also fits 450A,B,C's 550A,B,C's RELATED TRACK LOADERS 455'S , 555'S and more.
CONTROL SHAFT SPRING T24433 NEW 14.00 ea
OR SET OF (2) @ 20.00/SET
Flywheel Clutch Throw Out bearing $25.00 ea
Flywheel clutch pressure plate AT25817 or AT43120
AT104345 or AT30757 or AT35213 or AT17766 ............ NEW
also fits 450B, 450C, 450D, 450E
Click HERE to view all of our new steering clutch
