John Deere 450 Crawler
JD450 STEERING CLUTCHES


NEW FRONT IDLERS FOR JD4540 CRAWLER DOZER AND LOADER    375.00 EA  2 available

The John Deere Model 450's ("plain" model 450) originally used 8 fiber discs p/n T20716 and 7 steel separator plates p/n T20717 (T31732). When later models were developed they used bimetallic discs to replace the earlier style fiber discs. The bimetallic disc part number is T44129. The same numbers of discs were used in all circumstances. Most of the time you can get by with only changing the friction discs. The steel separator plates can usually be re-used. Check them for roughness, warping, or dishing and if they are clean, smooth, and straight, by all means re-use them!

To help "steer" you toward creating a superior steering clutch we wanted to encourage you to use the bimetallic steering clutch discs and to eliminate the old style fiber friction discs. To do this, we have discontinued the fiber friction discs to make sure you get a superior clutch.

Because we have now eliminated our costs of buying and stocking the earlier style fiber friction discs we were able to make the bimetallic friction discs in a larger less expensive volume, letting us lower the bimetallic disc cost from $29.00 ea to $24.00 ea

                                                   FOR PARTS AND SERVICE INFO SCROLL TO BOTTOM OF THIS PAGE.



                            uspsfreeshippingicon.jpg (27000 bytes)  In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

FOR A WIDER SELECTION OF ALL OF OUR DISCS MADE
FOR MANY OF THE JOHN DEERE MACHINES....
CLICK HERE


T20716 fiber disc, new aftermarket, .....no longer supplied...use Bimetallic
T44129 bimetallic disc, new aftermarket,  NOW $24.00 ea
T20717  steel separator plates, new aftermarket,
$17.00

IF YOU DECIDE YOU NEED A COMPLETE CLUTCH PACK...
.8 BIMETALLIC AND 7 STEEL SEPARATOR PLATES...TOTAL  $279.90 PER SIDE




JD450 450B BIMETALLIC & STEEL DISCS    T44129 BIMETALLIC FRICTION DISCS 24.00 EA  Will work for dry type or oil type cteering clutches.   Some users prefer the paper over the bimetallic and some prefer bimetallic over paper faced discs. We provide both options.  See below for paper option for oil type clutches.


JD_450C_450D_450E_T82355_STEERING_CLUTCH_DISC_PAPER.JPG (340287 bytes)  T82355 FRICTION DISCS, PAPER FACED.  Some users prefer the paper over the bimetallic and some prefer bimetallic over paper faced discs. We provide both options.    PAPER FACED  $27.00 EA



T20717_JD450_CLUTCH_PLATE.JPG (114500 bytes) The T20717 steel separator plates are often confused with the T31732 plates used in the later steering clutches.  To be sure which plates you have in your clutch the thickness should be measured.  The T20717 will measure closer to .087- .09 while the later discs will be closer to .097-.099.  If the quantity of your discs varies from what is normally required, it is usually caused by the mis-use of the wrong steel separator plates.  The JD 450B used the thicker plates.


JD450 STEERING CLUTCH PRESSURE PLATE.jpg (77743 bytes) To complete your repair of the JD450 steering clutch, we have produced NEW steering clutch pressure plates, complete with mounting cover, springs and levers.         AT18416                230.00 ea

JD450450BSTRRGCLBRG.jpg (65589 bytes)  JD450 New Steering Clutch Throw Out bearing  $25.00 ea

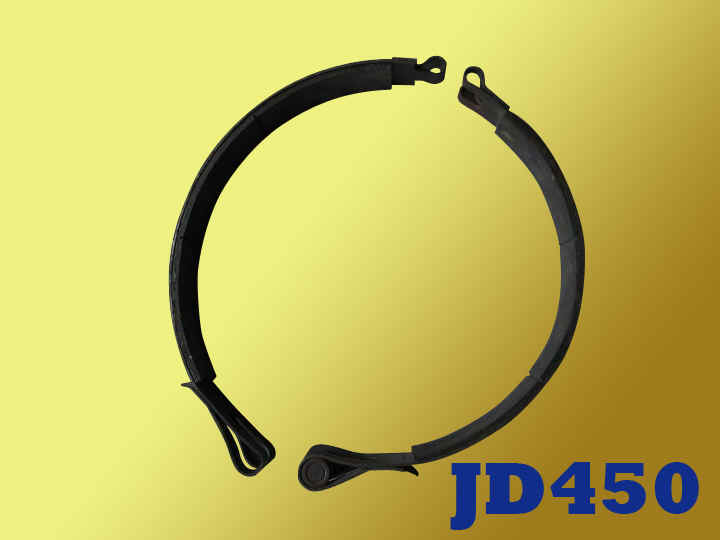

JD450 BRAKE BAND-1.jpg (144143 bytes) Brake band, two pieces, upper and lower, new bands with new linings, both halves for a total of
  AT129806 & AT129807  replaces earlier AT18420/AT18418 and AT86899/AT86898 ................. Complete 2 piece band @ $180.00   We ordered enough of these in volume to keep the cost down to make the brake band competitive with relining your own band.  This will speed up your repair and cut your costs by having them ready to install.


JD_450-450B_BRAKE_LINING_KITS.jpg (189901 bytes)    BRAKE BAND LINING KITS, COMPLETE w/ RIVETS FOR 2 PCE BRAKE BAND  $65.00
You will have to heat the earlier style bands, scrape and power brush the off the old glued on linings if you have the glued on linings.  Because later brake bands, if upgraded to the riveted on linings, they will be inconsistent in the placement of rivets. For this reason these linings are not yet countersunk for the rivets.


JD_T23861_BRAKE_BAND_RET_SPRING.JPG (182383 bytes)  BRAKE BAND RETAINER SPRINGS  T23861   $16.00 EA OR SET OF (2) @ 25.00
Also fits 450A,B,C's  550A,B,C's  RELATED TRACK LOADERS 455'S , 555'S and more.


JD_T24433_STEERING_CLUTCH_SPRING_JD450_JD450B.JPG (178747 bytes)  STEERING CLUTCH CONTROL SHAFT SPRING   T24433    NEW   14.00 ea   OR SET OF (2) @ 20.00/SET

JD450FLYWHLCLBRG.jpg (63075 bytes)  JD450 New Flywheel Clutch Throw Out Bearing  $25.00 ea

JD9326_PILOT_BEARING_JD450_JD450B.JPG (141853 bytes)  JD9326 STEERING CLUTCH PILOT BEARING   $4.00  (ONE USED PER CLUTCH)


AT25817AT17766AT30757AT352130.JPG (152809 bytes) Flywheel clutch pressure plate AT25817 or AT43120
AT104345 or  AT30757 or AT35213 or AT17766   ............  NEW   135.00

also fits 450B, 450C, 450D, 450E


AT141683AT18548AT21500.JPG (33398 bytes)   Flywheel clutch driven member (lined cluch disc)  AT21500 or
AT18548 or AT141683..............new  221.00



STEERING CLUTCH TOOL
When putting your clutch together it is important to get the throwout bearing close to the 3 clutch release levers.  JD makes a tool for this but as you have probably discovered they do not sell the tool, and asking to borrow one, if they even have it, well.....you are better off  writing a letter to Santa.  Luckily, Grimy Men stick together and help each other......You can download a drawing of the tool from our website (CLICK HERE).   If you can print the file on 8 1/2 x 14 legal size paper you will have a good pattern to get you going.  You can get fancy or just make the tool from a manila folder, cardboard, foam board, or whatever is handy.


Using the above tool, you can follow the workings of a fellow Grimy Man  who has sent some pictures and narrative on how he worked out the clutch adjustment.  This may help you in your steering clutch adjustments. (CLICK HERE FOR Randy Mcmillian's hints)  Pictures below



JD450 STEERING CLUTCH AND FINAL DRIVE PARTS

JD450 STEERING CLUTCH SERVICE INFO    When assembling the steering clutch,
BE SURE you place one friction disc underneath the retaining ring on the inner hub.

JD_450_CRAWLER_STRRG_CL_TROUBLESHOOTING






Click HERE to view all of our new steering clutch discs.


CLICK HERE FOR DETAILS
