T4 T5 TD4 & TD5 STEERING CLUTCHES

The 7 fiber and 6 steel discs required are 21.00 ea for new. 675848R2 fiber friction discs go with 635384R1 steel discs

The steering clutches for the later International model 500, 500C, and 500E series crawlers were derived from the earlier T4, T5,TD4, and TD5 crawlers. The T4/TD4 T5/TD5 crawlers used 7 fiber discs 675848R2 (their part number changed from 635385R1 and 6 steel discs 635384R1. We supply new after market replacement DISCS, DRUMS, HUBS, BRAKE BANDS, and PRESSURE PLATES for your clutch packs.
To be sure that you get the correct discs and related parts, please make sure that your discs match the dimensions and tooth counts.

                                              uspsfreeshippingicon.jpg (27000 bytes)  In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email webmaster@tractorparts.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



FIBER DISCS 675848R2 (old p/n 635385R1) 21.00 ea 26 internal teeth, 9" O.D.
STEEL DISCS 635384R1 20.00 ea 9 external square dogs

TD4 TD5 CLUTCH DISCS
TD4 AND TD5 Steering Clutch Discs

TD4STEERINGCLUTCHPRESSUREPLATE.jpg (28155 bytes)   T4 & TD4 NEW  STEERING CLUTCH PRESSURE PLATE  635557R91    125.00 ea



TD4THROWOUTBEARING359957R91.jpg (91385 bytes)   TD4 STEERING CLUTCH THROW-OUT BEARING.....359957R91   $15.00 ea

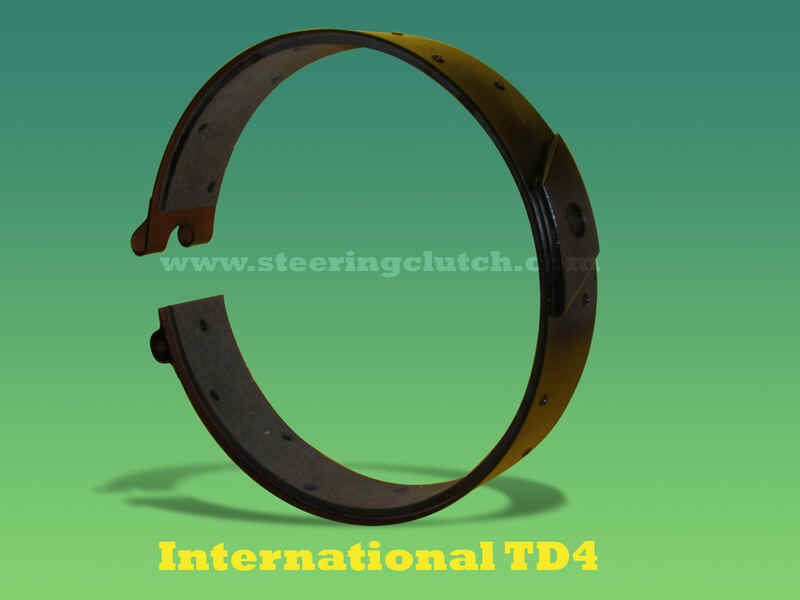

636576R91_BRAKE_BAND.jpg (25854 bytes)    T4 & TD4 NEW BRAKE BANDS WITH NEW LINING  636576R91  175.00 ea

TD4   BASE PLATES.....635381R2........635381R2_BASE_PLATE.JPG (189731 bytes)...............$185.00 ea

TD4    INNER STEERING CLUTCH DRIVING HUBS....635376R1 / 636416R1......636416R1_INNER_DRIVING_HUB.JPG (207334 bytes)........$165.00 ea

TD4    INNER STEERING CLUTCH DRIVING HUBS RETAINER RING   IH_RETAINING_RING_635394R1_TD4_TD5_500.jpg (406086 bytes)   635394R1       (arriving February 2017)

$19.00 EA  or $32.00 for set of 2

(SET..........635393R1 & 635392R1 LINKS ....one of each.....$60.00)     IH_ADJUSTING_LINK_635392R1_635393R1.JPG (211012 bytes)
ADJUSTING LINK (female end)............635393R1...........$35.00

ADJUSTING LINK (male end)...............635392R1............$35.00



TD5/T5

FIBER DISCS 675848R2 (old p/n 635385R1) 21.00 ea 26 internal teeth, 9" O.D.
STEEL DISCS 635384R1 20.00 ea 9 external square dogs

TD4 TD5 CLUTCH DISCS
TD4 AND TD5 Steering Clutch Discs

TD5STEERINGCLUTCHPRESSUREPLATE.jpg (28020 bytes)   T5 & TD5 NEW STEERING CLUTCH PRESSURE PLATE   635557R91 125.00 ea

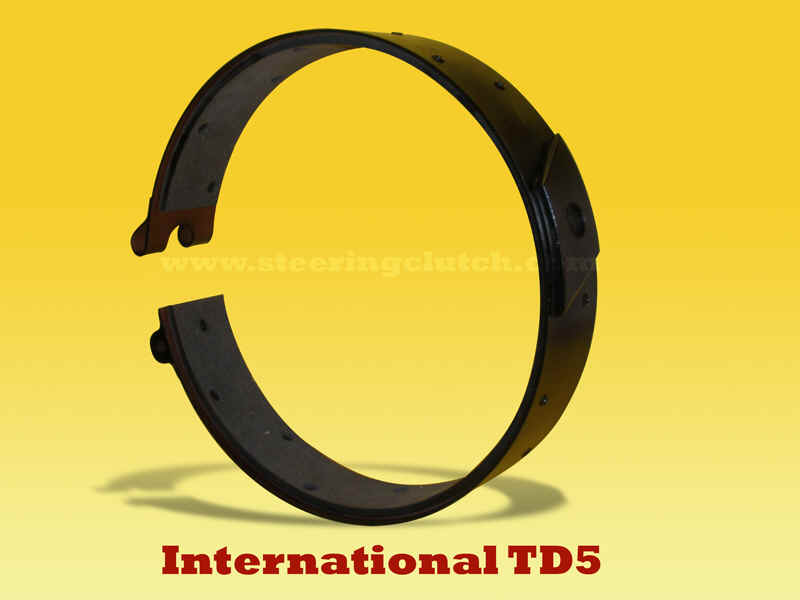

636576R91_BRAKE_BAND.jpg (25854 bytes)     T5 & TD5 NEW BRAKE BANDS WITH NEW LINING   636576R91       175.00 ea


TD4TD5BRAKEDRUM.jpg (3350 bytes)    T4 & TD4/T5 & TD5 NEW BRAKE DRUMS      185.00 ea

TD5THROWOUTBEARING359957R91.jpg (86048 bytes)   TD5 STEERING CLUTCH THROW-OUT BEARING.....359957R91   $15.00 ea

BASE PLATES.....635381R2........635381R2_BASE_PLATE.JPG (189731 bytes)...............$185.00 ea

INNER STEERING CLUTCH DRIVING HUBS....635376R1 / 636416R1......636416R1_INNER_DRIVING_HUB.JPG (207334 bytes)........$165.00 ea


TD5    INNER STEERING CLUTCH DRIVING HUBS RETAINER RING

  $19.00 EA  or $32.00 for set of 2

(SET..........635393R1 & 635392R1 LINKS ....one of each.....$60.00)     IH_ADJUSTING_LINK_635392R1_635393R1.JPG (211012 bytes)
ADJUSTING LINK (female end)............635393R1...........$35.00

ADJUSTING LINK (male end)...............635392R1............$35.00


TD4TD5STEERINGCLUTCHLEVER.jpg (92470 bytes) SET OF 3 = 353246R91 Steering Clutch levers for T4/TD4 and T5/TD5 ...55.00 per set of 3
includes 3 each of
353243R91 Lever
51461D Spring
51460D Pin
103371 Pin


INTERNATIONAL TD4/TD5 STEERING CLUTCH PARTS

TD4 AND TD5 FINAL DRIVE PARTS

INTERNATIONAL T4 T5 TD4 TD5 SPECIFICATIONS

To adjust your steering clutch levers and pressure plate, the two pages below were contributed
by Jim Stoneman of MitsBits Dozer Parts in VIctoria, Australia.......Thanks much Jim!!

TD4 and TD5 steering clutch adjustment:
        Page 1
        Page 2




Click HERE to view all of our new steering clutch & friction discs.


CLICK HERE FOR DETAILS



Email  webmaster@tractorparts.com for orders or questions.


CONTACT OUR OFFICE at 1-208-342-8911

General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
*All prices are in USD & do not include shipping
All prices are for new aftermarket unless stated otherwise
All OEM part numbers are for references only
