TD6 TD61 TD62 STEERING CLUTCHES

In repairing the TD6 (same as TD61 and TD62)steering clutches you have a couple of options. If your clutches are totally trashed, or completely frozen, you will probably have to resort to cutting some of the discs out to save the inner driving drum, the brake drum and the pressure plate. That means replacing all of the fiber discs and probably most of the steel discs. Be careful with your hammers!  If you do accidentally break your clutch pressure plate or brake drum, we have replacements, but try to avoid that expense.  You can do a lot to clean up the steel discs with some heavy duty cleaning, wire brushing and sandblasting. You will want a clean smooth surface so that the steel disc surfaces will not chew up the new fiber or bimetallic discs with their roughness.


The TD6 normally uses 12 fiber discs and 11 steel discs for each clutch. If you do not have to change all of them, and can get by with only changing a few fiber discs, then by all means just replace the bad fiber discs with more fiber discs. If you have to replace all 12 fiber discs, or at least 12 of the 24 fiber discs required for both clutches, then you should consider upgrading and improving one or both of your clutches by using bimetallic friction discs instead of the old style fiber discs.

Because of the different thickness of the discs, upgrading to the bimetallic discs requires 14 bimetallic discs and 13 steel discs per clutch. The bimetallic discs are of course a little more expensive, but you end up with a clutch less prone to having your clutch discs sticking or bonding to each other, a longer clutch life, and an increased friction surface area, resulting in a higher coefficient of friction, and no broken teeth!  The bimetallic discs are not nearly as affected by moisture as the fiber discs. You can certainly expect to run your machine a lot longer without having to go into the steering clutches again!

                                 uspsfreeshippingicon.jpg (27000 bytes)  In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email webmaster@tractorparts.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



The TD6 fiber discs 43729D  are 14.00 ea
The TD6 bimetallic discs 329394R1  are 23.00 ea
The TD6 steel discs 43728D  are 24.00 ea

IH TD6 STEERING CLUTCH DISCS
TD6 BIMETALLIC CLUTCH DISCS

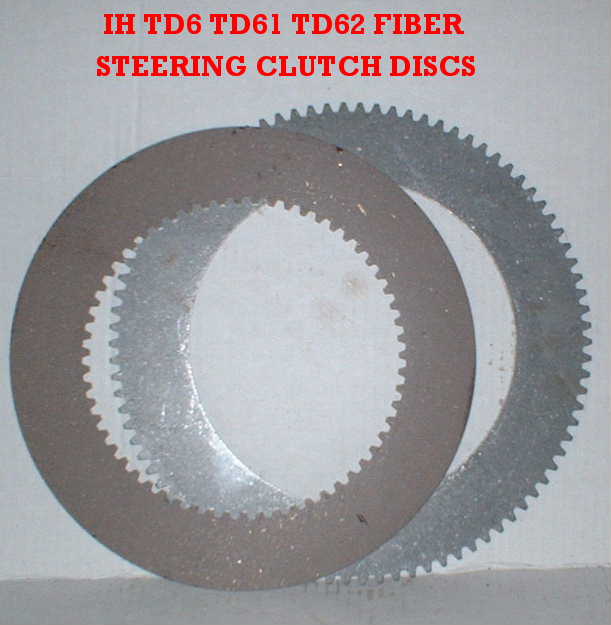

IH TD6 FIBER STEERING CLUTCH DISCS
TD6 FIBER STEERING CLUTCH DISCS

We now have on hand:

T6TD6BRAKEBAND.JPG (20075 bytes)  NEW BRAKE BANDS  P/N 53518D-->265044R91   SERIAL# 501 UP TO 38911   200.00 (TOTAL FOR ALL 3 PIECES)

46029D  BRAKE BAND RELEASE SPRING
41509D  BRAKE BAND RELEASE SPRING WASHER
46027D  BAKE BAND ADJUSTING BOLT.....................

SET OF SPRING, WASHER, AND ADJUSTING BOLT    NEW $15.00/SET or 2 SETS FOR $25.00

IH TD6 BRAKE BAND.jpg (126888 bytes)  NEW BRAKE BANDS  P/N 274969R91 FOR TD6'S SER#38912->UP    200.00 (TOTAL FOR BOTH PIECES)

IH TD61 BRAKE BAND.jpg (133170 bytes)  NEW BRAKE BANDS  FOR TD61 CRAWLER DOZERS AND LOADERS     200.00 (TOTAL FOR BOTH PIECES)

IH TD62 BRAKE BAND.jpg (131542 bytes)  NEW BRAKE BANDS  FOR TD62 CRAWLER DOZERS AND LOADERS    200.00 (TOTAL FOR BOTH PIECES)


RELEASE_SHAFT_BRG_and_BUSHING_6376DAX_.JPG (190297 bytes)   STEERING CLUTCH RELEASE SHAFT BEARING AND BUSHING CASTING   6376DAX......$62.00 EA NEW



IH TD6 STEERING CLUTCH PRESSURE PLATE
NEW STEERING CLUTCH PRESSURE PLATES P/N 8155D 8155DB @ 220.00 ea.


International TD6 6659DA PLATE.JPG (137614 bytes)
NEW STEERING CLUTCH END PLATES.   P/N 6659DA  @ 123.00 EA

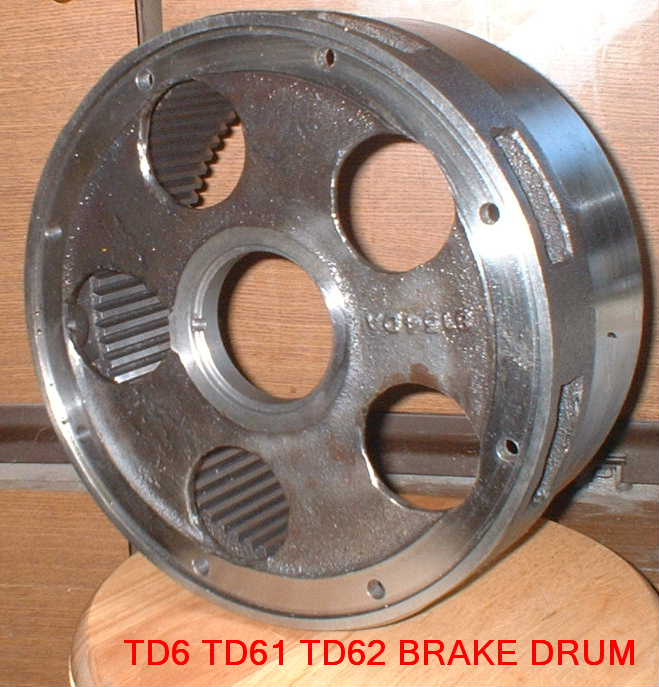

TD6 TD61 TD62 BRAKE DRUM
TD6 TD61 TD62 BRAKE DRUM...NEW BRAKE DRUMS  P/N 8154D (8154DA) @ 230.00 ea



TD6 TD61 TD62 STEERING CLUTCH PILOT BEARING (BRAKE DRUM BEARING W/ SNAP RING)  ST333...NEW....$45.00
Alternate part numbers  701104R91   707509R91   274836R91    53389D


AETNA A-1554 !!!    IH STEERING CLUTCH THROW-OUT BEARING....FITS TD6'S, BTD6'S AND BTD8'S.   AETNA BEARING A-1554    IH P/N'S  55670D  IH P/N 701995R93   IH P/N 70315R91     $100.00 ea



P2190119.JPG (128922 bytes)  TD6 TD61 TD62 STEERING CLUTCH INNER DRIVING DRUM  ...NEW.... $260.00   8153DA

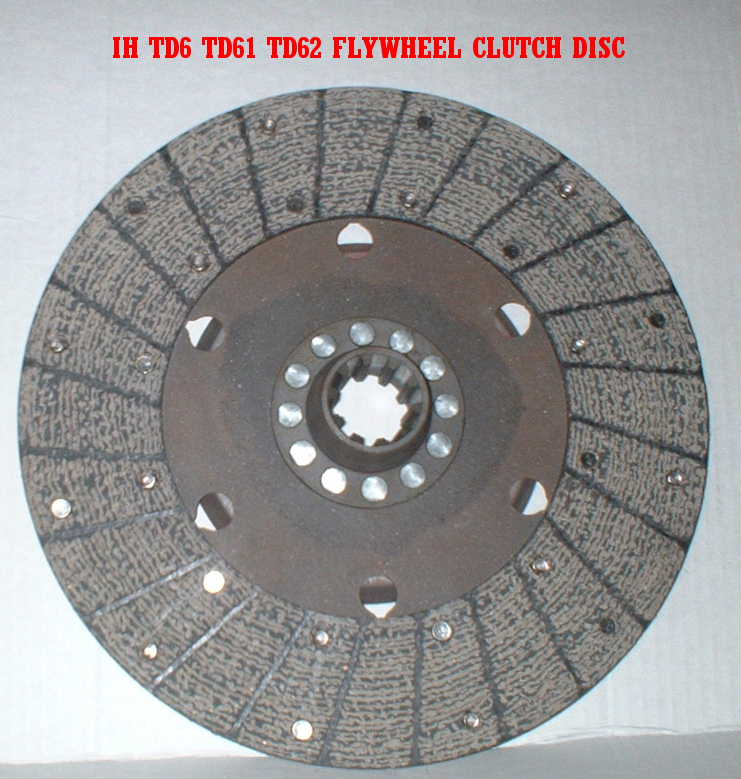

IH TD6 TD61 TD62 FLYWHEEL CLUTCH DISC
TD6 TD61 TD62 Flywheel Clutch Disc $147.00


International TD6 Clutch Springs 26031D 38514D 317833R1.JPG (147039 bytes)
TD6 FLYWHEEL CLUTCH RETURN SPRINGS            SET OF 4 @ $25.00 FOR THE SET
IH P/N's 26031D  38514D  317833R1    ROCKFORD P/N's  CL3459   CL3558  11324

FOR BTD6 (TD6B) CRAWLERS MADE IN GREAT BRITAIN, THE FLYWHEEL CLUTCH RETURN SPRINGS 268613R1  (SET OF 3) $24.00 SET  IH_BTD6_268613R1_CLUTCH_SPRING.JPG (136944 bytes)
           The BTD6 springs are heavier duty, and have an additional tension coil, than the regular TD6 clutch springs.  They DO NOT interchange.

IH_ST223_BEARING_TD6_BULLGEAR_INNER_BEARING.JPG (158676 bytes)     FINAL DRIVE BULLGEAR INNER BEARING    ST223   NEW $33.00


IH_64482D_FINAL_DRIVE_PINION.JPG (265843 bytes)       Final Drive Pinion 64482DX 12T   $235.00 NEW


53810D LARGE PINION NUTS   16.00 EA OR 25.00 FOR SET OF 2

51337D  SMALL PINION NUTS 13.00 EA OF 20.00 FOR SET OF 2

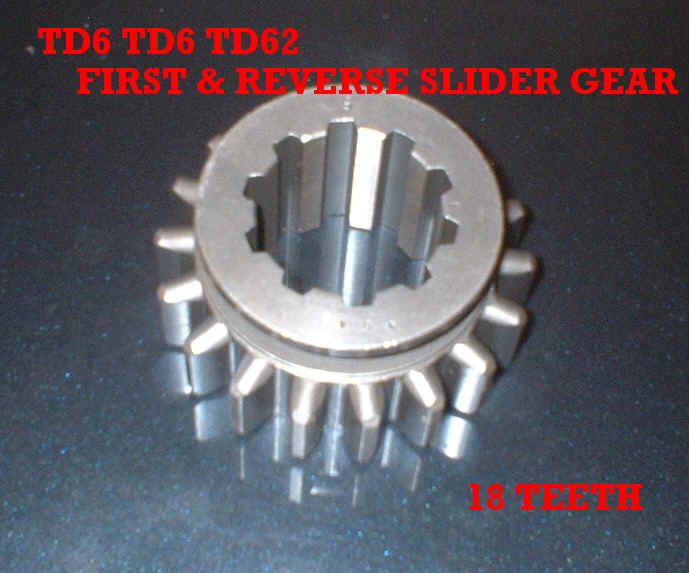

TD6 SLIDER GEAR 1ST-REVERSE.JPG (155417 bytes)
TD6 TD61 TD62 FIRST & REVERSE SLIDER GEAR NEW 155.00 EA

Part Nos# 51964D ---> 258624R2


IH FINAL DRIVE SEALS.JPG (145774 bytes)
T6 TD6 SERIES
INTERNATIONAL FINAL DRIVE SEALS
TD6 (SMALLER) 53532D ---> 313204R1       85.00
TD6 (LARGER) 53535D     --->313203R1     125.00


NEW SEALS NOW AVAILABLE for the "B" series BTD6 made in Great Britain   (ALSO FIT THE BTD8 AND B100)  702991R91

BTD6FINALDRIVESEAL.jpg (89942 bytes)  Part Number 702991R91 NEW SEALS for the inner final drive on the BTD6.  The smaller outer seal 53532D ---> 313204R1 is shown above.  The price of the new larger inner final drive seals is $185.00 ea   These seals also fit the Final Drives for the BTD8 and B100 crawlers.

TD6 258278R1.jpg (55469 bytes)    NEW STEERING CLUTCH SHAFT NUTS........Your steering clutch shaft usually has a retaining nut that has been used several times over the decades, resulting in pulled/rolled threads and a locking ring that has been used so many times that finding a good spot on the locking ring to bend and lock is not always possible.  You DO NOT want these nuts backing off or coming off of the threaded end of the shaft.  Coming up with good used nuts was becoming more difficult, and very labor intensive to just get a nut, so we had these made to solve their lack of availability.      258278R1    24.00 ea.


PARTS AND SERVICE INFO

INTERNATIONAL TD6 STEERING CLUTCH PARTS PAGES
INTERNATIONAL TD6 BRAKE PARTS
INTERNATIONAL TD61 STEERING CLUTCH PARTS
INTERNATIONAL TD62 STEERING CLUTCH PARTS PAGES
INTERNATIONAL BTD6 (TD6B-UK MFGR) STEERING CLUTCH PARTS
INTERNATIONAL TD6 STEERING CLUTCH SERVICE INFO
Making your steering clutch compression tools for later TD6's and TD9's
These pictures were contributed by GraemeWalsh of Walsh Ag Ltd in New Zealand

COMPRESSION_TOOL_TD6___STRRG_CLUTCH.jpg (68821 bytes)  COMPRESSION_TOOL_TD6__STRRG__CLUTCH.jpg (70334 bytes)  COMPRESSION_TOOL_TD6__STRRG_CLUTCH.jpg (67030 bytes)  COMPRESSION_TOOL_TD6__STRRGCLUTCH.jpg (64354 bytes)  COMPRESSION_TOOL_TD6_STRRG__CLUTCH.jpg (68954 bytes)  COMPRESSION_TOOL_TD6_STRRG_CLUTCH.jpg (54307 bytes)  COMPRESSION_TOOL_TD6_STRRG_CLUTCH_.jpg (66252 bytes)  COMPRESSION_TOOL_TD6_STRRGCLUTCH.jpg (57058 bytes)  COMPRESSION_TOOL_TD6TD6_STEERING_CLUTCH.jpg (63931 bytes)
INTERNATIONAL TD6 FLYWHEEL CLUTCH PARTS PAGES
INTERNATIONAL TD61 FLYWHEEL CLUTCH PARTS PAGES
INTERNATIONAL TD62 FLYWHEEL CLUTCH PARTS PAGES
INTERNATIONAL TD6 FLYWHEEL CLUTCH SERVICE INFO

INTERNATIONAL TD6 FINAL DRIVE PARTS PAGES
INTERNATIONAL TD61 FINAL DRIVE PARTS PAGES
INTERNATIONAL TD62 FINAL DRIVE PARTS PAGES
INTERNATIONAL TD6 FINAL DRIVE SERVICE INFO
