TD9 TD91 TD92 TD9B STEERING CLUTCHES
and L150 Track Loader

In repairing the dry type TD9 TD91 TD92 and early TD9B steering clutches you have a couple of options. If your clutches are totally trashed, or completely frozen, you will probably have to resort to cutting some of the discs out to save the inner driving drum, the brake drum and the pressure plate. That means replacing all of the fiber discs and probably most of the steel discs.  You can do a lot to clean up the steel discs with some heavy duty cleaning, wire brushing and sandblasting. You will want a clean smooth surface so that the steel disc surfaces will not chew up the new fiber or bimetallic discs with their roughness.

The TD9 normally uses 11 fiber discs and 10 steel discs for each clutch. If you do not have to change all of them, and can get by with only changing a few fiber discs, then by all means just replace the bad fiber discs with more fiber discs. If you have to replace all 11 discs, or at least 11 of the 22 fiber discs required for both clutches, then you should consider upgrading and improving one or both of your clutches by using bimetallic friction discs instead of the old style fiber discs.

Upgrading to the bimetallic discs requires 12 bimetallic discs and 11 steel discs per clutch. The bimetallic discs are of course a little more expensive, but you end up with a clutch less prone to having your clutch discs sticking or bonding to each other, a longer clutch life, and an increased friction surface area resulting in a higher coefficient of friction. The bimetallic discs are not nearly as affected by moisture as the fiber discs. You will eliminate the possibility of broken friction disc teeth by choosing the bimetallic option.  Upgrading to the bimetallic disc pack does cost more and you are the only one that can make the decision between the two different styles of clutch packs.  For some people the labor and inconvenience involved in future steering clutch repair is not a consideration, while for others it is very important.

The TD9/TD91/TD92/TD9B and L150 steering clutch brake bands we have in stock are completely new with new bands and new linings.  You can replace either the 3 piece bands or the 2 piece bands at a price ($200.00 ) competitive with having your lining replaced and installed.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email webmaster@tractorparts.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.




The TD9 fiber discs  46825D are 20.00 ea
The TD9 bimetallic discs 320395R91 are 27.00 ea
The TD9 steel discs 46826D are 24.00 ea

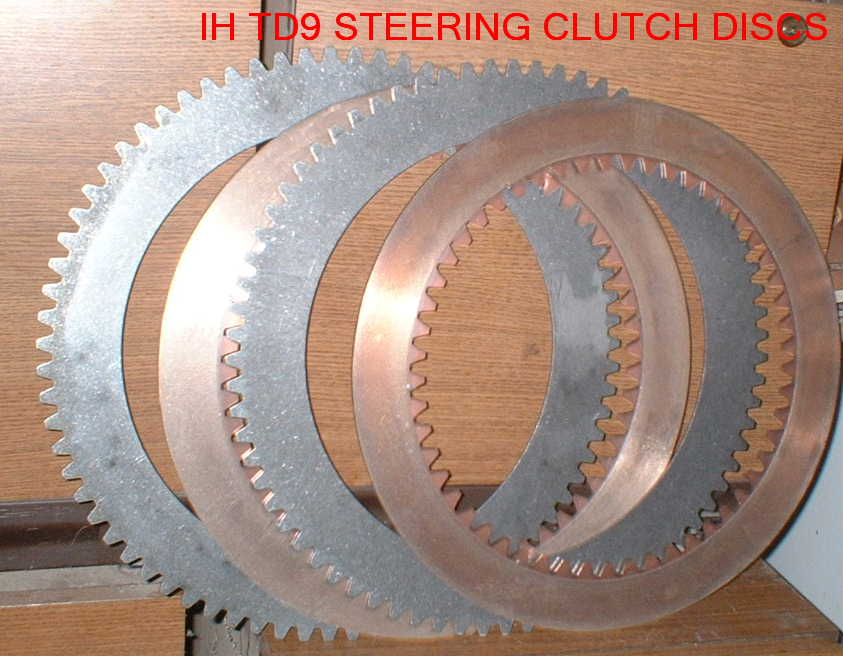

IH TD9 STEERING CLUTCH DISCS
TD9 TD91 TD92 TD9B Bimetallic Steering Clutch Discs p/n 320395R91 @ $27.00 ea


International TD9 6470D PLATE.JPG (141196 bytes)
TD9 STEERING CLUTCH END PLATE P/N 6470D....NEW...$105.00

8237DB_TD9_PRESSURE_PLATE.JPG (158959 bytes)   TD9 TD91 TD92 TD9B STEERING CLUTCH PRESSURE PLATE 8237DB (8237DA)   NEW  $180.00

IH 53520_TD9_STRRG_CLUTCH_BRAKE.JPG (196865 bytes)  TD9 STEERING CLUTCH BRAKE BANDS         53520DA         3 PIECE BAND    $200.00
FITS TD9'S FROM THE 1940 SER#501 THRU 1956 SER#60300
REPLACES 68632D or one each of the 47958DXA 47959DXA 53489DXA


TD9_BRAKE_DRUM_8235D_8235DA_8235DB.JPG (124601 bytes)    BRAKE DRUM FITS TD9/TD91/TD92/TD9B   8235D/8235DA/8235DB   NEW  and in stock  $318.00 ea

46029D  BRAKE BAND RELEASE SPRING
41509D  BRAKE BAND RELEASE SPRING WASHER
46027D  BAKE BAND ADJUSTING BOLT.....................

SET OF SPRING, WASHER, AND ADJUSTING BOLT    NEW $15.00/SET or 2 SETS FOR $25.00

IH_TD91_TD92_TD9B_STRRG_CLUTCH_BRAKEBAND.JPG (207173 bytes)  2 PIECE STEERING CLUTCH BRAKE BANDS     274160R91   $200.00 total for both pieces to make one brake band
For NEW brake drums, see above...........

274160R91-->603468C91 HIGH CAPACITY   THE 2 PIECE BAND FITS THE TD91, TD92, TD9B SERIES AND ALSO THE L150 LOADERS


RELEASE_SHAFT_BRG_and_BUSHING_6376DAX_.JPG (190297 bytes)   STEERING CLUTCH RELEASE SHAFT BEARING AND BUSHING CASTING   6376DAX......$62.00 EA NEW


TD9 TD91 TD92 TD9B STEERING CLUTCH PILOT BEARING (BRAKE DRUM BEARING W/ SNAP RING)   ST333...NEW....$45.00
Alternate part numbers  701104R91    707509R91   274836R91   53389D

AETNA_A-1555_BEARING.JPG (194510 bytes)   AETNA A-1555  !!  STEERING CLUTCH THROW-OUT BEARINGS FOR TD9, TD91, TD92, TD9B'S.

AETNA P/N A-1555 BEARING   IH P/N 55745D BEARING   $110.00 ea



IH TD9 FLYWHEEL CLUTCH DISC
TD9 TD91 TD92 Flywheel Clutch disc $174.00


TD9 CLUTCH SPRINGS.JPG (130916 bytes)  TD9 FLYWHEEL CLUTCH RETURN SPRINGS.   INTERNATIONAL P/N 50431D  ROCKFORD P/N CL-4351
FITS TD9 SER# 501 THRU 67461...........NEW SPRINGS, SET OF 3 @ $22.00/SET

IH_TD91_268613R1_CLUTCH_SPRING.JPG (135972 bytes) TD91 SERIES FLYWHEEL CLUTCH RETURN SPRINGS.   ROCKFORD P/N of CL9552 AND
INTERNATIONAL P/N 268613R1  SET OF 3 $24.00


TD9 SLIDER GEAR 1ST-REVERSE.JPG (211551 bytes)
TD9 TD91 TD92 TD9B SLIDER GEAR  19 TEETH   155.00 EA
PART NUMBERS 52216D--->258626R3


IH_52215D_52215DA_52215DB_TD9-TRANS_GEAR.JPG (218177 bytes) TD9 TD91 TD92 TD9B 52215D 52215DA 52215DB TRANSMISSION GEAR  46T 1ST GEAR  ...NEW..190.00 EA


IH_ST223_BEARING_TD9_FINAL_DRIVE_OUTBOARD_BEARING.JPG (158676 bytes)  TD9 TD91 TD92 TD9B FINAL DRIVE OUTBOARD BEARING....ST223  NEW  $33.00


IH FINAL DRIVE SEALS.JPG (145774 bytes)T9 TD9 SERIES
INTERNATIONAL FINAL DRIVE SEALS
TD9 (SMALLER) 53538DA ---> 313206R1       100.00
TD9 (LARGER)   53537DA ---> 313205R1         125.00

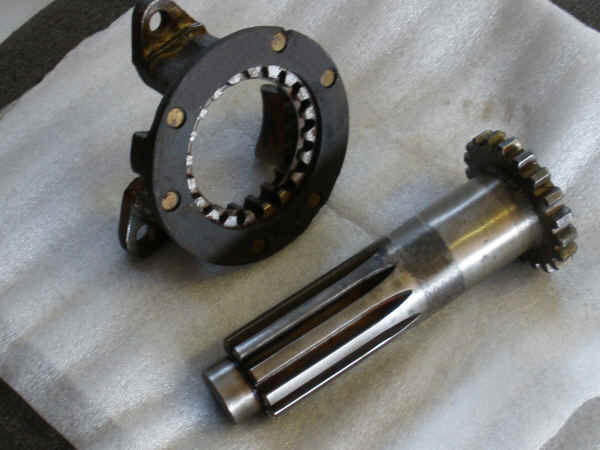

TD9/TD91 FLYWHEEL CLUTCH SHAFT AND COUPLING
266457R1 COUPLING and 266459R1 SHAFT               Set of shaft and coupling  225.00

TD9 258278R1.jpg (57789 bytes)  NEW STEERING CLUTCH SHAFT NUTS........Your steering clutch shaft usually has a retaining nut that has been used several times over the decades, resulting in pulled/rolled threads and a locking ring that has been used so many times that finding a good spot on the locking ring to bend and lock is not always possible.  You DO NOT want these nuts backing off or coming off of the threaded end of the shaft.  Coming up with good used nuts was becoming more difficult, and very labor intensive to just get a nut, so we had these made to solve their lack of availability.     258278R1         24.00 ea.
